Diesel engine V3800 series
4-cylinderturbochargeddirect injection

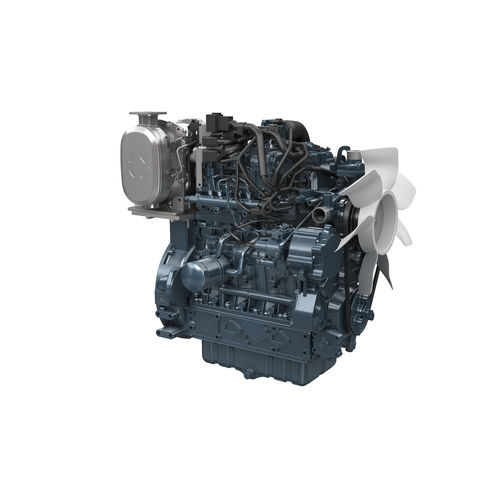

Diesel engine - V3800 series - KUBOTA Engine - 4-cylinder / turbocharged / direct injection
Diesel engine - V3800 series - KUBOTA Engine - 4-cylinder / turbocharged / direct injection
Diesel engine - V3800 series - KUBOTA Engine - 4-cylinder / turbocharged / direct injection - image - 2
Diesel engine - V3800 series - KUBOTA Engine - 4-cylinder / turbocharged / direct injection - image - 3
Diesel engine - V3800 series - KUBOTA Engine - 4-cylinder / turbocharged / direct injection - image - 4
Diesel engine - V3800 series - KUBOTA Engine - 4-cylinder / turbocharged / direct injection - image - 5
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, direct injection, common rail
Cooling system
water cooling
Emissions level
Tier 4, Stage III
Other characteristics
4-stroke, with particulate filter, low-noise
Power

55.4 kW, 74.5 kW, 84.8 kW, 86.4 kW, 96.4 kW
(75.32 hp, 101.29 hp, 115.3 hp, 117.47 hp, 131.07 hp)

Torque

310 Nm, 335 Nm, 375.1 Nm, 385 Nm, 446.6 Nm
(228.644266 ft.lb, 247.08332 ft.lb, 276.659562 ft.lb, 283.961427 ft.lb, 329.395256 ft.lb)

Rotational speed

2,200 rpm, 2,400 rpm, 2,600 rpm
(13,823.0077 rad.min-1, 15,079.6447 rad.min-1, 16,336.2818 rad.min-1)

Weight

325 kg
(716.5 lb)

Description

Proven Reliability and Technology The latest technology and strong performance-two things customers expect from Kubota engines. We continue to provide both through the pursuit of excellence in emissions compliance and progress toward fully electronic controlled engines. These key areas allow Kubota to offer flexibility in the products and services we provide to customers worldwide. Clean and Quiet Power A common rail system has made it possible to optimize combustion and create a more durable and quieter engine with higher fuel efficiency. This engine model is available with Diesel Particulate Filter(DPF) + DOC aftertreatment. Emissions Compliance Meeting rigid emissions regulations can be a challenge for any company. V3800-CR-T-E4B engines have been designed to comply with stringent regulations: EPA / CARB interim Tier 4 + EU Stage IIIB. In addition, innovative emissions solutions, such as the use of aftertreatment units, have also been integrated into the engines. Flexibility Flexibility is a must when working with customers in different countries who have different engine needs. Since Kubota V3 Series engines have evolved along every step in meeting the requirements of each EPA Tier, we are able to provide our customers worldwide with engines certified for the appropriate emissions regulations. In addition, we have designed aftertreatment units with minimum impact for easy installation. Trust Kubota V3 Series engines are the ideal solution for your company’s global marketing strategy. We continuously strive to meet your needs with the experience and expertise that is your due.
