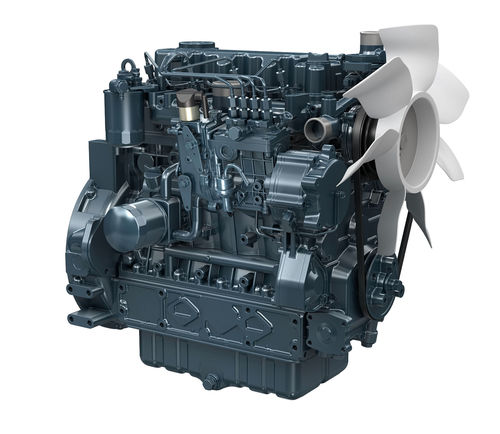

Diesel engine V3300-E2B series
4-cylinderturbochargedin-line

Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 2
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 3
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 4
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 5
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 6
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 7
Diesel engine - V3300-E2B series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 8
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, direct injection, in-line
Cooling system
water cooling
Emissions level
Tier 2, Stage II
Other characteristics
4-stroke
Power

53.9 kW, 54.9 kW, 65.1 kW, 66.8 kW
(73.28 hp, 74.64 hp, 88.51 hp, 90.82 hp)

Torque

234.4 Nm, 244 Nm, 282.4 Nm, 305 Nm
(172.884568 ft.lb, 179.965164 ft.lb, 208.287551 ft.lb, 224.956456 ft.lb)

Rotational speed

2,600 rpm
(16,336.2818 rad.min-1)

Displacement

2.434 cm³
(0.082 US fl oz)

Weight

241 kg
(531.31 lb)

Length

87 mm
(3.4 in)

Width

102.4 mm
(4 in)

Height

3.4 mm
(0.1 in)

Description

Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification. Dimensions and weight depend on completed specifications. 1: SAE J1995 gross intermittent *2: Exclude cooling fan and exclude aftertreatment unit *3: Exclude cooling fan and include aftertreatment unit on engine
