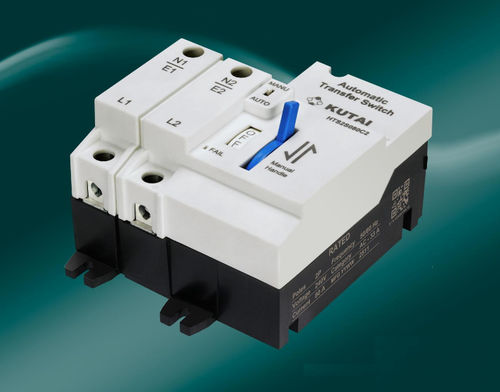

Manual transfer switch HTS

intelligentautomaticpanel-mount

Overview
The HTS residential Automatic Transfer Switch (ATS) integrates the switching mechanism and a microcontroller-based controller into a single compact unit. Its height matches BH‑type MCCBs for direct fit into household distribution panels. Available configurations: 2P 80A 110V, 2P 80A 220V, 3P 80A 220V (single-phase 3‑wire) and 3P 80A 220V (three-phase 3‑wire). During transfer an intermediate “both sources OFF” pause provides arc extinction time, allowing safe on-load switching at rated voltage and current. Typical applications include residential buildings, telecom base stations and small renewable-energy systems.

Patents
U.S. Pat. No. Pending
TAIWAN Pat. No. I923250
CHINA Pat. No. ZL 2025 2 0003676.X

Key features

• On-load transfer capability at rated voltage and current.
• Intermediate dual‑power OFF position for arc extinction during changeover.
• All‑in‑one design: integrated switch and microcontroller controller.
• AUTO/MANU selector with handle operable in MANU mode.
• Built‑in four high‑breaking‑capacity fuses.
• Mechanical lugs for direct conductor connection (no crimp terminals required).
• Switch position indicator window with clear conduction status display.
• Transfer failure indicator LED and 2‑second confirmation delay on power loss/restoration to avoid unnecessary switching.
• Durable switching mechanism with operational life >6,000 cycles.
• Compliant with IEC 60947-6-1 and AC‑33A utilization category; flame retardance UL94‑V0.
• Optional RS‑80 engine remote start module for automatic generator start (remote dry contact and utility/generator signal outputs).

Specifications

• Operating voltage (Ue): 2P 110V: 90–125 Vac; 2P/3P 220V: 180–250 Vac
• Rated current (Ie): 80 A
• Operating frequency: 45–65 Hz
• Static power consumption: < 0.3 W
• Changeover delay time: adjustable 2–30 s
• Load category: AC‑33A (motor or mixed loads)
• Equipment classification: Class PC

Model numbers
HTS2S080C1 — 2P, 1 Phase 2‑wire, 110Vac
HTS2S080C2 — 2P, 1 Phase 2‑wire, 220Vac
HTS3S080C2 — 3P, 3 Phase 3‑wire, 220Vac
HTS1S080C2 — 3P, 1 Phase 3‑wire, 220Vac

Environment

• Operating temperature: -20 to +50 °C
• Storage temperature: -30 to +80 °C
• Relative humidity: up to 90% max.

Physical specifications

• Dimensions 2P: 122.5 (L) x 103.0 (W) x 75.7 (H) mm
• Dimensions 3P: 122.5 (L) x 128.0 (W) x 75.7 (H) mm
• Weight 2P: 736 g ±2%; 3P: 802 g ±2%

Technical details

• Changeover confirmation delay: fixed 2 s on power loss/restoration (prevents nuisance transfers)
• Operational life: >6,000 mechanical cycles
• Standards: IEC 60947‑6‑1, AC‑33A; UL94‑V0 flame retardance
