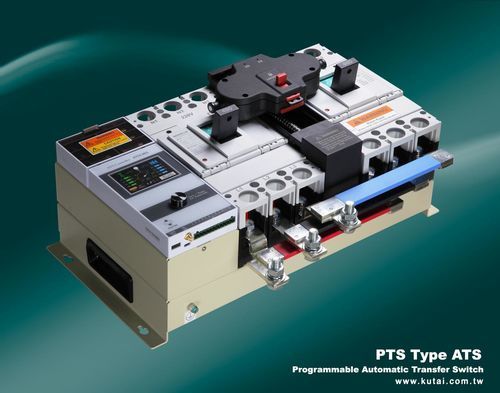

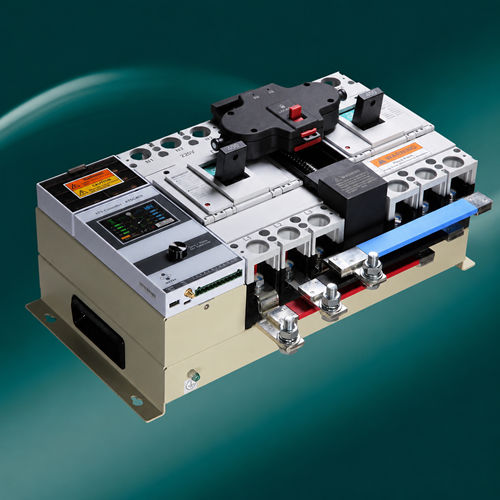

Automatic transfer switch PTS Type ATS
manualfor generatorsemergency power supply

Automatic transfer switch - PTS Type ATS - Kutai Electronics Industry Co., Ltd. - manual / for generators / emergency power supply
Automatic transfer switch - PTS Type ATS - Kutai Electronics Industry Co., Ltd. - manual / for generators / emergency power supply
Add to favorites
Compare this product
Go to the Kutai Electronics Industry Co., Ltd. website for more information

Characteristics

Type
automatic, manual
Applications
for generators, emergency power supply, for generator sets
Other characteristics
3-pole, 4-pole, three-phase, single-phase, interlock, remotely operated
Primary current

Min.: 250 A

Max.: 400 A

Voltage

Min.: 100 V

Max.: 480 V

Description

  • Integrated controller with switch, save space, installation time and cost
  • 3.5” color LCD panel, analog gauge-style and digital meter display, multilingual user interface
  • Built-in Wi-Fi and Bluetooth connectivity—no additional communication module required
  • Monitors and displays full-phase voltages, phase loss, frequency, and reverse phase sequence for both utility and generator power sources
  • Equipped with both electric and manual operation functions, featuring mechanical and electrical interlock protection to prevent simultaneous connection of utility and generator power sources to the load.
  • Equipped with Lockout–Tagout (LOTO) to prevent accidental energization that may cause electric shock or equipment damage
  • All settings can be configured directly on front panel or through Bluetooth connection with a smartphone
  • Provides auxiliary contact outputs for both utility and generator power sources
  • PTS firmware can be updated via Wi-Fi network or USB connection to a PC
  • Controlled pause at the OFF position for both utility and generator power sources during transfer
  • Supports automatic exercise scheduling configurable from 1 to 4 weeks.
  • Main transfer switch is available in Class CB or PC; When a Class CB breaker trips, a message will be displayed accordingly.
  • All fault messages are accompanied by an alarm sound to alert the user
  • Stores up to 250 event logs to facilitate fault tracking and analysis
  • Provides one set each of user-selectable from assigned function output and input contacts.
  • Programmable pause period in Auto Mode to prevent unnecessary generator operation (DC power input required)
  • Optional ATSC403B enables synchronized operation and monitoring.
  • Compliant with IEC 60947-6-1 International standard, AC-33A utilization category, and UL 1008 Type A standards
  • Features remote diagnostic capability with code displays for settings, sensor status, and input voltage, enabling factory technicians to analyze unexpected events.Integrated controller with switch, save space, installation time and cost
  • 3.5” color LCD panel, analog gauge-style and digital meter display, multilingual user interface
  • Built-in Wi-Fi and Bluetooth connectivity—no additional communication module required
  • Monitors and displays full-phase voltages, phase loss, frequency, and reverse phase sequence for both utility and generator power sources
  • Equipped with both electric and manual operation functions, featuring mechanical and electrical interlock protection to prevent simultaneous connection of utility and generator power sources to the load.
  • Equipped with Lockout–Tagout (LOTO) to prevent accidental energization that may cause electric shock or equipment damage
  • All settings can be configured directly on front panel or through Bluetooth connection with a smartphone
  • Provides auxiliary contact outputs for both utility and generator power sources
  • PTS firmware can be updated via Wi-Fi network or USB connection to a PC
  • Controlled pause at the OFF position for both utility and generator power sources during transfer
  • Supports automatic exercise scheduling configurable from 1 to 4 weeks.
  • Main transfer switch is available in Class CB or PC; When a Class CB breaker trips, a message will be displayed accordingly.
  • All fault messages are accompanied by an alarm sound to alert the user
  • Stores up to 250 event logs to facilitate fault tracking and analysis
  • Provides one set each of user-selectable from assigned function output and input contacts.
  • Programmable pause period in Auto Mode to prevent unnecessary generator operation (DC power input required)
  • Optional ATSC403B enables synchronized operation and monitoring.
  • Compliant with IEC 60947-6-1 International standard, AC-33A utilization category, and UL 1008 Type A standards
  • Features remote diagnostic capability with code displays for settings, sensor status, and input voltage, enabling factory technicians to analyze unexpected events.
