LCD display module ATSC403B

colornumeric480x320

Product Overview

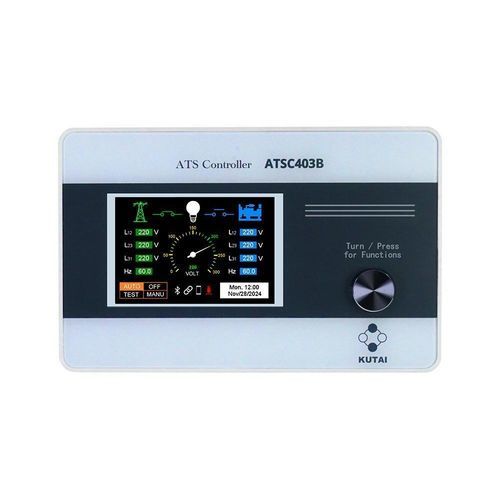

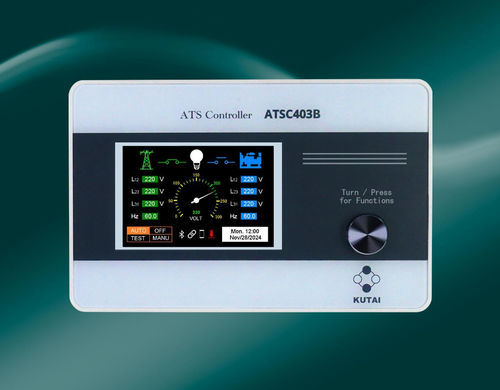

The ATSC403B is a panel-mounted remote operator display module for PTS controllers. It enables system operation, real-time ATS status monitoring and parameter configuration from outside the cabinet without opening the door, improving operational efficiency and on-site safety.

Features

• Connected to the PTS controller via two USB Type-C cables
• Microcontroller-based control with IP65 rating (dust tight and protected against low-pressure water jets)
• 3.5-inch color LCD (synchronized with the PTS controller)
• Multi-function rotary knob for direct parameter setting from the panel
• Panel-mount design for convenient operation and monitoring outside the enclosure
• Supports numerical and analog meter display for real-time power measurement
• Multilingual interface options: Traditional Chinese, English, Japanese, Spanish
• Audible alarm for all fault messages
• Built-in radar presence detection to auto-wake the screen

Specifications
Operating Voltage: 5Vdc
Static Power Consumption: < 0.8W
Display Resolution: 480 × 320 pixel

Standard Accessories

• Retaining clips: 2 pcs
• HU-100-TYPEC: 1000mm USB Type-C cable

Optional Accessories

• HU-200-TYPEC: 2000mm USB Type-C cable

Environment
Operating Temperature: -20 to +50 °C
Storage Temperature: -30 to +80 °C
Relative Humidity: 90% max.

Physical Specifications
Dimensions: 112.0 (L) × 176.0 (W) × 34.7 (H) mm (4.41 × 6.93 × 1.37 inch)
Cut-out Dimensions: 160.0 × 96.0 ±0.5 mm (6.22 × 3.78 ±0.02 inch)
Weight: 320 g ±2% (0.71 lb ±2%)

Technical details

• Model: ATSC403B
• Operating Voltage: 5Vdc
• Static Power Consumption: < 0.8W
• Display: 3.5-inch color LCD, 480 × 320 pixel
• IP Rating: IP65
• User interface: Multi-function rotary knob; multilingual support (Traditional Chinese, English, Japanese, Spanish)
• Connectivity: Two USB Type-C cables to PTS controller
• Built-in radar sensing for presence detection and auto wake
• Audible alarm for fault messages
• Standard accessories: 2 retaining clips, HU-100-TYPEC (1000mm)
• Optional accessory: HU-200-TYPEC (2000mm)
• Operating Temperature: -20 to +50 °C; Storage Temperature: -30 to +80 °C; Relative Humidity: up to 90%
• Dimensions (L×W×H): 112.0 × 176.0 × 34.7 mm; Cut-out: 160.0 × 96.0 ±0.5 mm; Weight: 320 g ±2%
