Automatic transfer switch RS-80

panel-mountfor generatorsemergency power supply

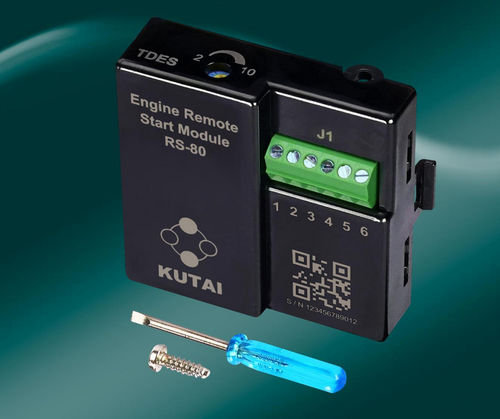

Product Overview RS-80 is a remote start module designed specifically for HTS series automatic transfer switches. Its plug-in design allows for quick connection to the main switch, providing a dry contact for engine remote start and electrical signal outputs for utility/generator connected to load. This design saves installation time and simplifies wiring. The module is equipped with fuses for DC power input and remote start contact output, and features a plastic housing rated UL94-V0 for enhanced safety and durability. It offers an adjustable start delay of 2 to 10 seconds and a fixed 10-second engine cool-down run time, making it suitable for all field applications.

Features

• Optional module for HTS Series Automatic Transfer Switch
• Plug-in module for quick connection with the main switch
• Provides dry contact for engine remote start (plug and play, no configuration required)
• Provides electrical signal outputs for utility and generator connected to load
• Equipped with fuses for DC power input and remote start contact output
• Uses screw terminal block; no crimp terminals required
• All plastic materials comply with UL94-V0 flammability rating

Electrical Specifications
DC Power Input: 9 to 36 Vdc
TDES Time Delay Engine Start: 2 to 10 seconds (adjustable)
TDEC Time Delay Engine Cool-down: 10 seconds (fixed)
Remote Start Contact Output: 4A @ 250Vac max.
Electrical signal outputs for Utility connected to load: NPN output 1.5A max.
Electrical signal outputs for Generator connected to load: NPN output 1.5A max.
Static Power Consumption: Less than 0.3W
Applicable Wire Gauge: 24 to 18 AWG

Environment
Operating Temperature: -20 to +50 °C
Storage Temperature: -30 to +80 °C
Relative Humidity: 90% max.

Physical Specifications
Dimensions: 56.5 (L) x 57.5 (W) x 16.5 (H) mm / 2.22 (L) x 2.26 (W) x 0.65 (H) inch
Weight: 41 g +/- 2% / 0.09 lb +/- 2%

Accessories
M3L10 Round Head Thread Cutting Self-Tapping Screw: 1 PCS
Slotted screwdriver: 1 PCS (2.0 mm)

Technical Specifications / Characteristics

• Designed for HTS series automatic transfer switches
• Plug-in, quick connection
• Dry contact for engine remote start
• Electrical signal outputs for utility/generator
• Fuses for DC power input and remote start output
• UL94-V0 rated plastic housing
• Adjustable start delay: 2-10 seconds
• Engine cool-down run time: 10 seconds
• Static power consumption: < 0.3W
• Operating temperature: -20 to +50 °C
• Dimensions: 56.5 x 57.5 x 16.5 mm
• Weight: 41 g +/- 2%
