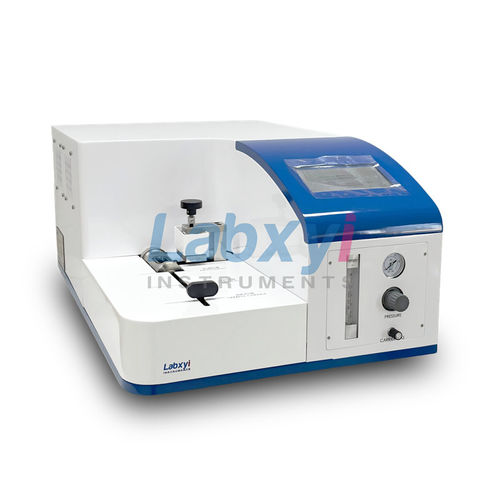

Benchtop combustion analyzer TOC-3000SD

calculated CO2

Product description
TOC-3000SD is a solid TOC analyzer based on high-temperature combustion with NDIR detection. It determines total carbon (TC) and total organic carbon (TOC) in solid matrices with a measurement range of 0.1-30 mgC, detection limit 0.1 mgC and repeatability ~3%.

Application

• Analysis of TC and TOC in solid samples: soil, silt, sediment, powders and other solid matrices.
• Operates as an independent offline unit for solid samples or can be combined with TOC-200B for concurrent solid and liquid analysis.
• Suitable for environmental, geotechnical and materials testing laboratories requiring solid carbon quantification.

Key features

• Optional independent module for flexible configuration and integration into existing TOC workflows.
• High-temperature combustion digestion with NDIR detection for TC and TOC quantification in solids.
• Stepwise CO2 storage and measurement to improve accuracy of solid sample analysis.
• Touch-screen control, large internal memory (up to 300000 records) and optional computer interface.

Specifications

• Model: TOC-3000SD offline solid TOC analyzer
• Detector: NDIR
• Parameters: TC, TOC
• Digestion mode: High-temperature combustion
• Application: Solid samples (soil, sediment, powder, etc.)
• Measurement range: 0.1-30 mgC
• Repeatability: 3%
• Detection limit: 0.1 mgC
• Power: 100-240 VAC
• Control: Touch screen
• Historical records: 300000 groups
• Computer: Optional
