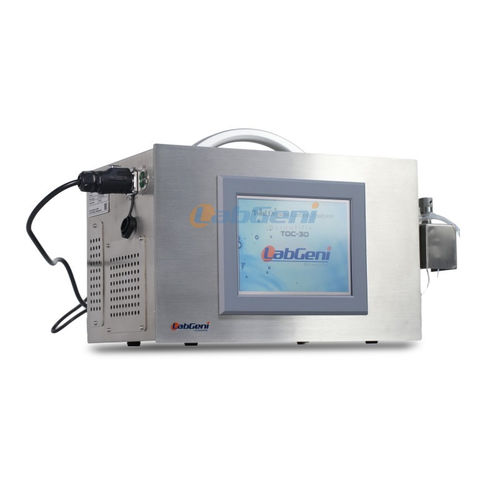

Water analyzer TOC-30

TOCmonitoringprocess water

Introduction:
TOC-30 is an online, continuous total organic carbon (TOC) analyzer designed for real-time monitoring of water supply systems. The instrument uses UV oxidation with TOC calculated as TOC = TC − TIC, enabling continuous process verification while optimising capital and operational costs.

Features:

• External enclosure in stainless steel 304 for industrial environments.
• Modular design allows configuration of functions to match system requirements (single-point or multi-point sampling).
• Supports single-point real-time and multi-point time-shared online monitoring.
• Waterproof and splash-resistant construction suitable for high-humidity and elevated-temperature sites.
• High-performance CPU for extended functionality, faster processing and improved measurement stability.
• Large-capacity data storage to retain historical records for extended periods.
• Precision flow-control design to stabilise oxidation and TOC measurement accuracy.
• Automatic upper-limit alarm output for prompt notification of abnormal results.
• Color touchscreen HMI for intuitive operation and local data review.

Technical parameters:

• Model: TOC-30
• Power: 100–240 VAC, 50 Hz, 120 W
• Conductivity detection range: 0.055 μS/cm – 8.000 μS/cm
• Measuring range: 0.001 mg/L – 1.5 mg/L (1500 ppb)
• Detection limit / Resolution: 0.001 mg/L
• Accuracy: ±3%
• Response time: within 5 minutes
• Sample temperature range: 1–95 ℃
• Ambient temperature range: 5–65 ℃

Specifications:

• Principle: UV oxidation; TOC = TC − TIC
• Materials: stainless steel 304 external housing
• Interface & storage: color touchscreen; large storage (≥5 years); USB flash drive (U-disk) export supported
• Compliance & security: user password login, level 4 permissions, meets FDA 21 CFR PART 11
• Print function: external mini printer
• History record: ≥5 years storage
• Overall dimensions (mm): 300 × 210 × 250 (L × W × H)
• Weight: 8.5 kg
