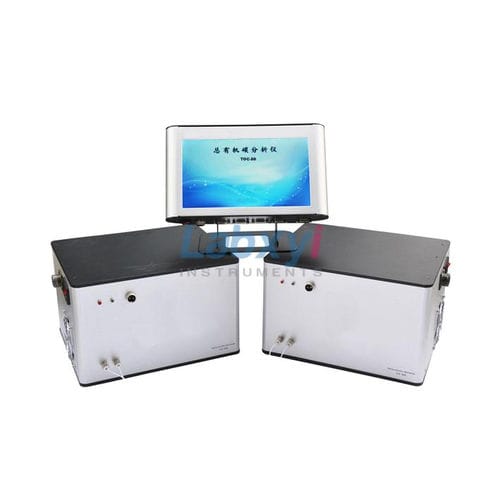

Water analyzer TOC-50

liquidsTOClaboratory

Product overview: TOC-50 is a multi-point Total Organic Carbon (TOC) analyzer developed by Labgeni for quantitative determination of TOC in water samples. The system comprises a central data terminal and up to 8 independent detection units. The terminal collects, displays and stores measurement data and provides printing and alarm functions. Each detection unit integrates an oxidation detector to monitor TOC at individual sampling points.

Application areas: Suitable for monitoring TOC in purified water, water for injection and deionized/ultrapure water in the pharmaceutical industry. Also applicable to ultrapure water systems in semiconductor manufacturing, deionized water preparation in power plants, research laboratories and other facilities requiring TOC monitoring.

Main features:

• 10-inch touch screen managing up to 8 detection units
• RS-485 communication interface
• Time-based data query and history deletion
• Detection by UV static oxidation principle
• Inlet/outlet tubing: 1 mm ID Teflon with 50 quick connectors supplied
• Ultra-low detection limit and high data stability
• Optional micro printer for real-time printing

Technical parameters:

• Model: TOC-50
• TOC detection range: 0.001 mg/L - 1.5 mg/L (1 µg/L - 1500 µg/L)
• Conductivity detection range: 0.055 µS/cm - 6.000 µS/cm
• TOC detection limit: 1 µg/L (0.001 mg/L)
• TOC detection accuracy: ±5%
• Response time: within 30 min
• Repeatability error: ≤ 3%
• Zero point drift: ±5%
• Measuring range drift: ±5%
• Sample temperature: 0 - 100 °C
• Ambient temperature: 5 - 65 °C
• Relative humidity: ≤ 85%
• Power supply: 220 V ±10%
• Power frequency: 50 Hz ±1 Hz
• Detection unit rated power: 50 W
