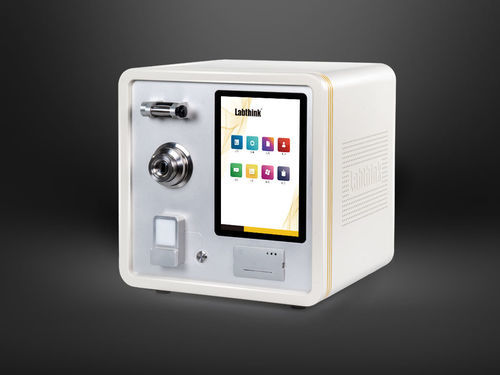

Air permeability tester C180M

pressurefor paperfor cigarette paper

The C180M Air Permeability Tester is based on the principle of the differential pressure method and is professionally suitable for air permeability tests of cigarette papers, filter plug wrap, filter joining paper, and materials with an oriented permeable zone. - Fully-automatic & High-precision Measurement - Fully automatic measurement without manual intervention. - Imported pressure regulating module is adopted with good pressure stabilization. - Automatic sample feeding function is available; the measurement times and intervals can be set freely. - The single point measurement time of samples with the same specification is less than 10 seconds, which improves the test efficiency. - Safe Design & Automatic Clamping - Pneumatic sample clamping saves time and labor, and the clamping strength is consistent with better sealing performance. - Anti-clamping design is safer for operation. - Vertical structure and LED observation lamp are convenient for sample observation. - Intelligent Control & Reliable Performance - 12.1" industrial-grade touch screen is equipped with tiled operation interface. - Two measurement modes: Automatic and Manual. - Multi-unit display: CU and ml/min. - Automatic statistics of Max. value, Min. value, Ave. value, standard deviation and coefficient of variation. - Automatic data storage and automatic memory when power off. - The tester is equipped with a micro-printer and a network port for data transmission. - Core components are all from world-renowned manufacturers with low failure rate and long service life. - Multi-level authority management, audit tracking and other software functions are available. (Optional) Test Principle: Under a certain pressure, the sample to be tested is clamped at a suitable measuring position, and the total air flow passing through the surface of the sample is measured. Reference Standards: ISO 2965, YC/T172, GB/T 12655, and JJG (Tobacco) -1998 Applications: - Basic Applications: It is suitable for the air permeability tests of cigarette papers, filter plug wrap and filter joining paper. - Extended Applications: It is suitable for permeability tests for materials with an oriented permeable zone. Technical Specifications: - Test Ranges: Coresta 0–20000, mL/min 0–40000 - Resolution: Coresta 0.1 - Pressure Range: 0–2 kPa - Pressure Accuracy: ±0.25%FS - Measurement Interval: 30–999 mm - No. of Test Cells: 1 set - Test Area: 2 cm² (2 cm × 1 cm) - Sample Size: ≥1" x 1” (3 cm × 3 cm) - Sample Thickness: ≤120 Mil (3 mm) - Gas Specifications: Dry air (user provided) - Gas Source Pressure: 87 PSI / 600 kPa - Port Size: Φ 8 mm Polyurethane tube - Dimensions: 18.5” (H) x 18.5” (W) x 17.7” (D) (47 cm × 47 cm × 45 cm) - Power: 120VAC±10% 60Hz / 220VAC±10% 50Hz (either-or) - Net Weight: 55 Lbs (25 kg) Configurations: - Standard Configurations: Tester mainframe, 12.1" touch screen, micro printer, power cord, Φ 8 mm polyurethane tube - Optional Parts: Computer, software, air compressor, CFR21Part11, GMP computer system requirements Note: The compressed air inlet of the tester is a Φ 8 mm polyurethane tube (with a pressure of 87 PSI / 600 kPa); the air source is provided by the user.
