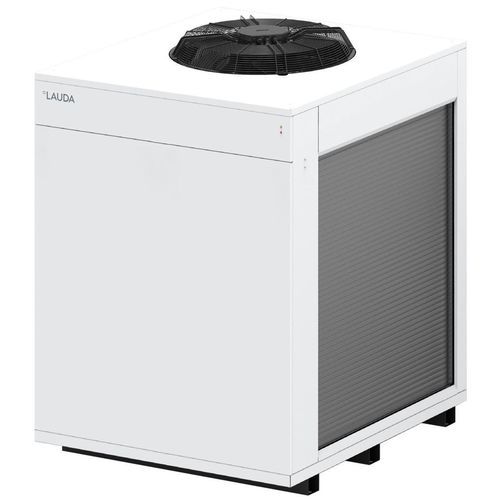

Water chiller Ultracool UC 100

glycol waterfor refrigerationindustrial

Product overview
LAUDA Ultracool circulation chillers provide precise temperature control across an extended working range. Working temperature range: -10 to 35 °C. Temperature stability is reported as ±0.5 K in the product overview and 1 ± K in the technical section. Protection class IP 54 allows outdoor installation. Standard fan control supports operation at ambient temperatures down to -20 °C and reduces noise. The unit footprint is reduced compared with previous comparable models. An Ethernet interface is integrated and numerous options (e.g. speed-controlled pumps, flow meters) allow customer-specific configurations.

Key features

• Industrial circulation chiller
• Electronic 2-point temperature control
• Integrated water filter
• Stainless steel inlet and outlet water connections
• LCD remote control with 5 m cable
• Protection class IP 54 (suitable for outdoor installation)
• Integrated Ethernet interface; operation possible via web server
• Operates with non-flammable fluids (water, water/glycol)
• Industrial block pump — nominal 300 L/min; max flow 367 L/min (50 Hz) / 450 L/min (60 Hz)
• Integrated phase detector
• Meets energy efficiency requirements of EcoDesign directive 2009/125/EC

Operating range

• Min. working temperature: -10 °C
• Max. working temperature: 35 °C
• Temperature stability: ±0.5 K (overview) / 1 ± K (technical section)

Technical data (according to DIN 12876)
Working temperature range: -10 ... 35 °C
Ambient temperature range: -20 ... 50 °C
Temperature stability: 1 ± K
Max. filling volume: 125 L
Max. discharge pressure: 5.3 bar (50 Hz), 7.5 bar (60 Hz)
Max. pump flow (pressure): 367 L/min (50 Hz); 450 L/min (60 Hz)
Nominal pump flow rate: 300 L/min
Inlet/outlet connection thread (internal): Rp 2 1/2
Dimensions (WxDxH): 1256 x 1706 x 1905 mm
Weight: 679 kg
Noise level: 69.3 dB(A)
Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

Cooling capacity (50 Hz / 60 Hz)
25 °C: 124.7 kW
20 °C: 121.4 kW
15 °C: 110.2 kW
10 °C: 95.3 kW
5 °C: 81.7 kW
0 °C: 68.3 kW
-5 °C: 57.5 kW
-10 °C: 47.8 kW

Accessories (examples)

• External bypass
• Reverse flow protection / shut-off valve
