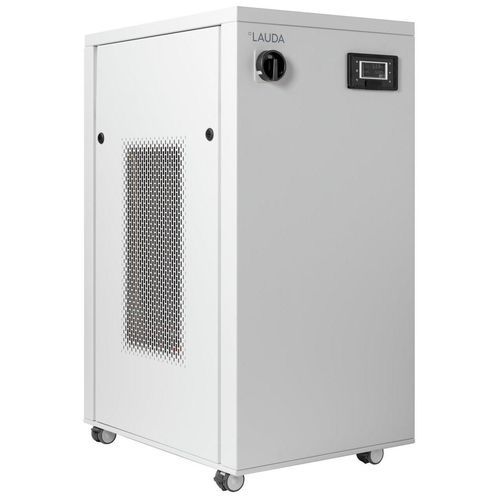

Water chiller Ultracool UC 2 W

glycol waterfor refrigerationindustrial

Product description
LAUDA Ultracool circulation chillers provide precise temperature control in an extended operating range from -10 to 35 °C with temperature stability of ±0.5 K. Standard fan control allows operation at ambient temperatures down to -15 °C and reduces noise. LAUDA has reduced the footprint compared with previous models. The units include an Ethernet interface as standard and can be tailored with options such as speed-controlled pumps, flow meters or IP 54 protection for outdoor installation.

Features

• High-efficiency industrial circulation chiller
• Electronic 2-point temperature control
• Integrated Ethernet interface
• Compliant with EcoDesign directive 2009/125/EC energy efficiency requirements
• Graphic LCD with clear-text menu navigation
• Industrial block pump with high pressure and high flow rate
• Stainless steel inlet and outlet water connections
• Water-cooled condenser
• Operation via web server possible
• Integrated water filter
• Compatible with non-flammable liquids (water, water/glycol)
• Water-cooled version (W)

Cooling capacity (50 Hz)
Temperature | Cooling capacity 50 Hz
25 °C | 3.1 kW
20 °C | 3.1 kW
15 °C | 2.8 kW
10 °C | 2.4 kW
5 °C | 2.0 kW
0 °C | 1.7 kW
-5 °C | 1.4 kW
-10 °C | 1.2 kW

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 35 °C
• Temperature stability: ±0.5 K
• Ambient temperature range: -15 ... 50 °C

Technical specifications

• Working temperature range: -10 ... 35 °C
• Ambient temperature range: -15 ... 50 °C
• Temperature stability: ±0.5 K
• Max. filling volume: 12 L
• Max. discharge pressure: 3.4 bar
• Max. pump flow (pressure): 42 L/min
• Nominal pump flow rate: 5.6 L/min
• Inlet / outlet connection thread (inside): Rp 1/2
• Water cooling connection thread (inside): Rp 1/2
• Dimensions (WxDxH): 510 x 680 x 1042 mm
• Weight: 89 kg
• Noise level: 53.5 dB(A)
• Power supply: 230 V; 50 Hz
• Power plug: Power cord without plug (HAR)
