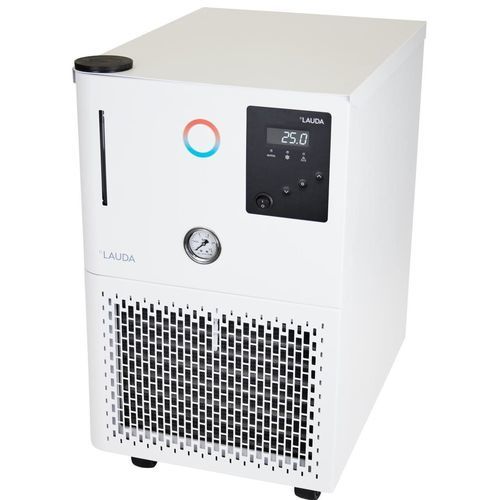

Water chiller Microcool MC 600

glycol waterfor refrigerationlaboratory

Product overview
The Microcool MC 600 is a bench/floor circulation chiller designed for laboratory and industrial tempering tasks. It provides approximately 0.6 kW cooling capacity (values depend on temperature and tempering medium) and uses natural refrigerants. The unit can be positioned on a bench or placed under a bench to save space.

Key features

• Circulation chiller for laboratory tempering
• Fully electronic continuous controller with 1-line LED display
• RS 232 interface for data communication
• Adjustable bypass for pressure limiting
• Air-cooled condenser
• Temperature protection for pump windings, illuminated level indicator and low-level alarm
• Auto-start timer and auto-shut-down functions
• Cooling capacity control via solenoid valve with compressor on/off control
• Operates with non-flammable liquids (water, water/glycol)
• User-friendly menu with 3-key operation
• Magnetically coupled block pump
• Top filler opening and rear outlet connection
• Uses natural refrigerants

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 40 °C
• Temperature stability: 0.5 ± K

Cooling capacity (examples)
Temperature / Tempering medium / Cooling capacity 50 Hz / Cooling capacity 60 Hz:
- 40 °C / Water–glycol / 0.6 kW / 0.6 kW
- 20 °C / Ethanol / 0.6 kW / 0.6 kW
- 10 °C / Ethanol / 0.5 kW / 0.5 kW
- 0 °C / Ethanol / 0.37 kW / 0.37 kW
- -10 °C / Ethanol / 0.2 kW / 0.2 kW

Technical specifications

• Working temperature range: -10 ... 40 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.5 ± K
• Max. discharge pressure: 1.3 bar
• Max. pump flow: 35 L/min
• Inlet / outlet connection thread (outside): G 3/4"
• Filling volume: 4–8 L
• Dimensions (W×D×H): 350 × 480 × 595 mm
• Net weight: 50 kg
• Noise level: 54 dB(A)
• Max. power consumption: 0.62 kW
• Current consumption: 3.2 A
• Power supply: 230 V; 50 Hz (variants available)
• Power plug: Power cord with angled Schuko plug (CEE7/7)
• Order reference (example configuration): L004455

Documentation
Datasheet Microcool MC 600, user manual and product brochures available for download.
