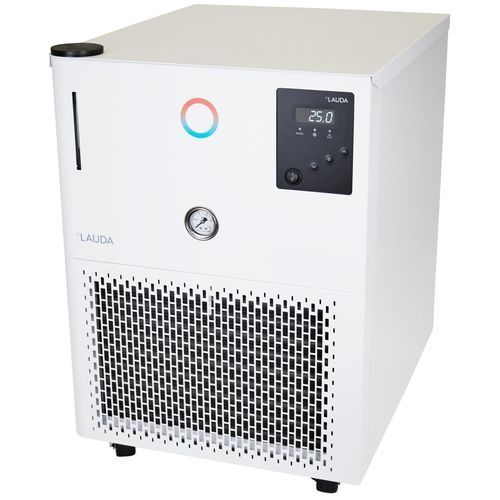

Industrial refrigeration unit Microcool MC 1200

stationarycompactmono-temperature

Product description
The Microcool MC 1200 is a compact circulation chiller designed for laboratory and industrial bench or floor installation. Offering up to 1.2 kW cooling capacity (dependent on medium and temperature), it supports tempering with non-flammable liquids and natural refrigerants while maintaining precise temperature stability.

Features

• Circulation chiller for laboratory and light industrial use
• Fully electronic continuous controller with user-friendly 3-key menu
• RS‑232 interface and 1‑line LED display (actual/set temperature)
• Adjustable bypass for pressure limiting and temperature-protective pump monitoring
• Condenser cooled by air; magnetically coupled block pump
• Auto-start timer and auto-shut-down; cooling capacity control via solenoid valve with compressor on/off
• Operates with non-flammable liquids (water, water/glycol) and utilizes natural refrigerants
• Top filler opening and rear outlet connection for easy installation

Working range

• Min. working temperature: -10 °C
• Max. working temperature: 40 °C
• Temperature stability: 0.5 ± K

Technical data (according to DIN 12876)
Working temperature range: -10 ... 40 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.5 ± K
Max. discharge pressure: 1.3 bar
Max. pump flow (pressure): 35 L/min
In / Outlet connection thread (outside): G 3/4"
Filling volume: min. 7 L, max. 14 L
Dimensions (WxDxH): 450 x 550 x 650 mm
Weight: 63 kg
Noise level: 59 dB(A)
Max. power consumption: 0.82 kW
Current consumption: 4.2 A
Power supply: 230 V; 50 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (according to table)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
40 °C | Water/glycol | 1.2 kW | 1.2 kW
20 °C | Ethanol | 1.2 kW | 1.2 kW
10 °C | Ethanol | 1.05 kW | 1.05 kW
0 °C | Ethanol | 0.75 kW | 0.75 kW
-10 °C | Ethanol | 0.4 kW | 0.4 kW

Part number
Part no.: L004461

Technical specifications

• Brand: LAUDA
• Model: Microcool MC 1200
• Working temperature range: -10 ... 40 °C
• Temperature stability: 0.5 ± K
• Filling volume: 7–14 L
• Pump: magnetically coupled block pump; max. flow 35 L/min
• Connections: G 3/4" (outside)
• Dimensions (WxDxH): 450 x 550 x 650 mm
• Weight (net): 63 kg
• Noise level: 59 dB(A)
• Max. power consumption: 0.82 kW; Current: 4.2 A
• Supply / plug: 230 V; 50 Hz / power cord with angled plug (CEE7/7)
