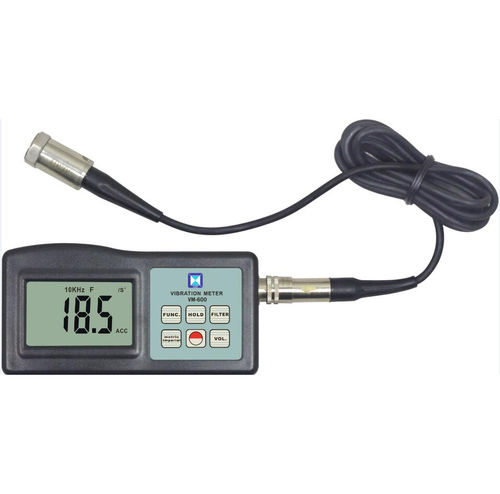

Machine monitoring vibration meter VM-600

portabledigital

Vibration Meter VM-600 Feature • In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines. • Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes. • Individual high quality ccelerometer for accurate and repeatable measurements. • Wide frequency range (10Hz~10kHz) in acceleration mode. • Optional headphones for use as electronic stethoscope. • Bearing condition monitoring function. • Use "USB data output" and "RS-232 data output" to connect with PC. • Provide "Bluetooth ™ data output" choice. Specification • Sensor Piezoelectric Accelerometer • Measuring Range : Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak • Measuring Range : Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS • Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak • Frequency Range Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz • Velocity: 10 Hz ~ 1k Hz • Displacement: 10 Hz ~ 1k Hz • Accuracy :5 % of Reading + 2 digits • Metric / Imperial Conversion • Analogue Output AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) • Max. Value Hold • Power Off :Manual Power Off or Auto Power Off • Battery Indicator :Low Battery Indicator • Data Output :USB, RS-232, Bluetooth • Operating Conditions :Temperature: 0~50 °C Humidity: <90 %RH • Power Supply:4 x 1.5V AAA size (UM-4) Battery • Dimensions :124 x 62x 30 mm • Weight :120 g (Not Including Batteries)
