digital light meter

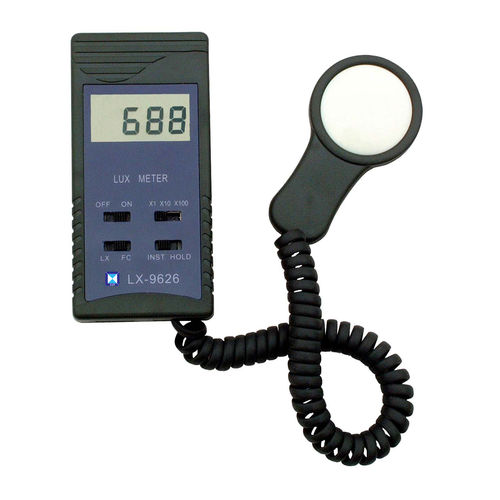

Lux Meter LX-9626

Add to MyDirectIndustry favorites
Compare this product
digital light meter digital light meter - Lux Meter LX-9626
{{requestButtons}}

Characteristics

  • Type:

    digital

Description

Applications:
The Lux Meter is a specialised instrumentation measuring luminosity, brightness. widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.

Details:
• Digital display gives exact reading with no guessing or errors.
• Separate light sensor allow user take measurement at optimum position.
• Multi-parameter measurement: Lux & FC.
• Wide measuring range and high resolution.
• In build low battery indicator.
• Max value hold function.
• The use of durable, long lasting components, including a stronge, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortabley in either hand.

Specifications
• Display: 4 Digits, 10 mm LCD
• Parameters Measured:Lux , FC (Foot Candle)
• Measuring Range 0 ~ 50,000 Lux, 3 Ranges; 0 ~ 5,000 FC
• Max Value Hold Function
• Battery Indicator: Low Battery Indicator
• Operating Conditions:Temperature: 0 ~ 50 °C (32 ~ 122 °F),Humidity: < 80 %RH
• Power Supply: 4 x 1.5 V AAA Size (UM-4) Battery
• Dimensions: Main Unit: 132 x 64 x 30 mm, Sensor: 96 x 58 x 16 mm, Weight:280 g
Standard Accessories
• Main Unit
• Carrying Case(B07)
• Operation manual
Electrical Specifications:
Range Resolution Accuracy (23 ± 5 °C)
0 ~ 1,999 Lux 1 Lux ± ( 5% n + 5 d )
2,000 ~ 19,000 Lux 10 Lux ± ( 5% n + 5 d )
20,000 ~ 50,000 Lux 100 Lux ± ( 5% n + 5 d )
0 ~ 5,000 FC 1 FC ± ( 5% n + 5 d )
