video measuring machine / CNC
max. 370x270x150 mm | CV Series



  • Technology:


  • Other characteristics:

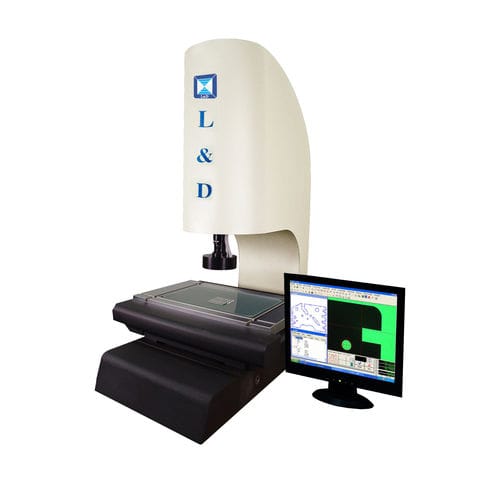

The CNC type video measuring machine is easy to operate. It works with QIM5008 automatic measurement software. It achieves batch measurement in an efficient manner. Its step servo will control the X, Y, Z axes in a high positioning accurate manner and with smooth movement. The control speed is at 200 mm/s. It has joystick and mouse operation, is easy-to-use, has high-hardness and a non-deformable granite base and upright columns. It has programmable LED ring light surface illumination and a LED contour light that is adjustable. It is able to measure complex work-pieces with high efficiency. It also has a fast auto focus, and an auto zoom as an option. Three versions, CV 250, CV 300, and CV 400, are available.
