Shock damper KL

fluidhydraulicmechanical

Overview

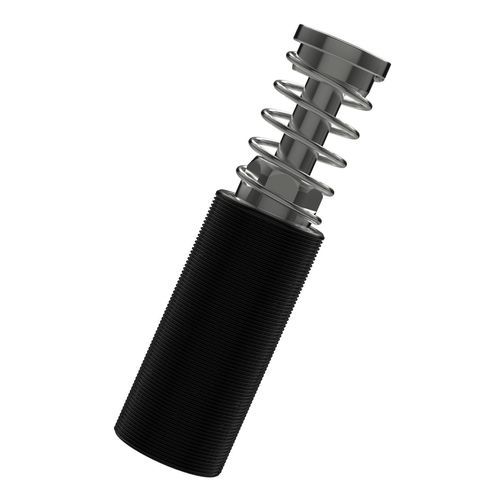

LEBEN’s KL-Type is a hydraulic industrial shock absorber with mechanical spring return (COMPENSER®) engineered for light machinery and compact installations. The KL series features a low retracting-force spring suitable for slow, creep-speed approaches and offers a very short design with high buckling resistance.

Applications

• Pallet truck fall protection during uncontrolled lowering
• Emergency stops for linear axes in case of drive failure or brake malfunction
• Safety dampers for lift tables, lifting units and lifting devices
• Shock absorption for stacker cranes and hoist end positions
• Fall protection for load-handling attachments in warehousing and conveying systems
• Protection of frames, guides and lifting mechanisms from hard impacts
• Vertical end stop for lifts and lowering stations; emergency buffer for vertical axes with limited installation space

Design & Function
The piston rod enters the pressure chamber together with the piston. During impact the damping medium flows through control grooves in the outer tube via the piston into the volume compensation chamber. The return spring is tensioned and, after impact, pushes the piston rod back to its initial position while the damping medium flows back into the pressure chamber. The KL-Type uses low-viscosity COMPENSOL® as damping medium and provides a mechanical spring return (COMPENSER®).

Designations

• 1 Impact cap
• 2 Piston rod
• 3 Return spring
• 4 Guide
• 5 Volume compensation chamber
• 6 Piston
• 7 Pressure chamber
• 8 Outer tube with control grooves
• 9 Tube closure

Accessories / Special Options

• Specific materials (e.g., stainless steel) for highly corrosive environments or food-industry applications
• High-quality corrosion protection per DIN EN ISO 12944 up to corrosivity category C5M
• Special mounting elements (e.g., threads) manufactured to customer geometry
• Special impact caps on request for dedicated applications

Technical specifications

• Product designation: KL-Type (compact damper)
• Product type: Hydraulic industrial shock absorber with mechanical spring return (COMPENSER®)
• Preferred mounting position: vertical (other positions on request)
• Low retracting force
• Very short design
• High buckling resistance
• Surface: housing zinc-plated (standard) or painted; piston rod hard chrome-plated (standard)
• Damping medium: low-viscosity COMPENSOL®
• Mounting: flange mounting (front or rear), foot mounting or fastening via lock nut
• Reaction force: option of constant over stroke or increasing reaction force in the front stroke range
• Very short activation time after impact
• Temperature range: -25 to +80 °C
• Energy conversion up to 20 kNm
