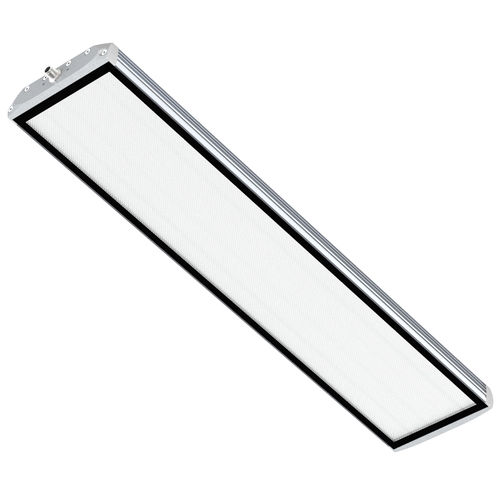

Light fixture FIELDLED EVO Aufbau

LEDfor machine toolsindustrial

LED machine light FIELDLED EVO structure in a width of 96 mm and a length of 1040 mm. The connection via M12 connector A-coded is located on the side of the front of the light. FIELDLED EVO surface-mounted is a very bright LED machine luminaire for homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine luminaire is preferably used in harsh environments, such as in metal cutting. Safety glass, a metal housing and high-quality seals protect against chips and coolant. The FIELDLED EVO can be easily retrofitted in almost any machine tool. The light is mounted via screw channels on the back and connected to 24V DC via a reverse polarity protected M12 connector. Optionally, there are further light holders available. Depending on the version, the connection is located at the rear or at the front of the FIELDLED EVO. The surface-mounted version of the FIELDLED EVO LED machine luminaire is available in two widths of 96 mm and 150 mm and in six different lengths. The FIELDLED EVO surface-mounted LED light was developed with a focus on high-intensity illumination of work areas in harsh, rough production environments, such as those encountered in the machining of tools. The LED surface-mounted luminaire easily copes with chips, oil, coolants and lubricants. Safety glass firmly bonded into the aluminium housing ensures the highest IP protection rating. Indestructibility has taken shape here. ADVANTAGES _Highest luminous intensity, homogeneous illumination, flicker-free without UV or IR component _Oil-resistant and chip-proof _Durable light output, as no oil or coolant burn-in _Various mounting options
