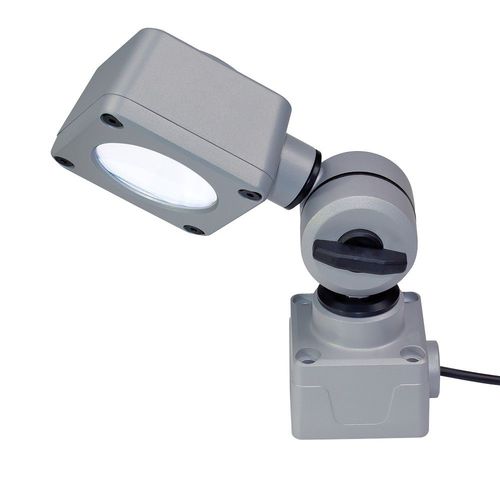

Light fixture CENALED SPOT DC

LEDIP67high-power

CENALED SPOT swivel head, the robust LED swivel head luminaire that cuts a fine figure even under rough conditions. The housing of the CENALED luminaire series is made of powder-coated aluminium. The movable swivel head sits directly on the screw-on base. The LED technology in the luminaire head is protected by almost 4 mm safety glass, completing the requirements for the approved high protection rating. Economical high-power LEDs ensure a luminous efficacy of 134 Im/W, which is exceptional in this class. The CENALED SPOT is available for machine connection with 24V DC and for direct connection with 100-305V AC. The connecting cables leading from the LED luminaire are each 3 m long. The CENALED SPOT is equipped with a screw-on base as standard. As a non-destructive installation variant, the luminaire can thus be screwed onto an optional magnetic holder and fixed to all magnetically adhering surfaces. Lamp luminous flux: - 1120 lm Lamp luminous efficiency: - 134 lm/W Light distribution: - direct Light colour: - 5000K 3-step MacAdam Connected load: - 24V DC ± 10% Power supply: - - Connection (connector): - Connection cable, oil flex, with open cable ends Class of protection: - III Beam angle (optics): - 30° Operating temperature: - -10 °C - +50 °C (14 °F - 122 °F) Colour rendering (Ra): - >80 Lamps lifetime: - > 100.000 h (L90/B10) Cover material: - ESG ~0,15“, shatterproof Weight (net): - 450 g (~16 oz) Gross weight: - 550 g (~19 oz) Risk group (DIN EN 62471): - free group Markings: - CE, UKCA, ETL Listed (5003529) Dimmable: - yes, via push button at the light head, ON/OFF and dimming Mounting accessories: - magnet holder plate optional Feature: - handy LED luminaire with high degree of protection
