Light fixture CENALED SPOT Aufbau DC

LEDIP67aluminum

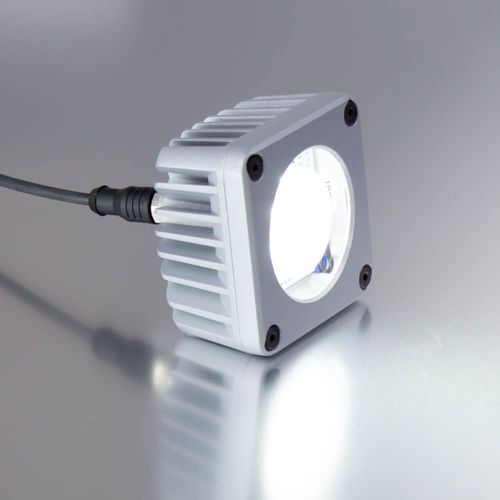

The CENALED SPOT DC is a high-intensity LED luminaire with a high degree of protection - suitable for original equipment manufacturers or for retrofitting in the machine sector. Thanks to IP67 - i.e. dust and water protected - and robust aluminum housing with strong safety glass, the luminaire can also be used in areas where the going gets rough - such as in automatic drilling machines and CNC or milling machines. The compact luminaire is available as a recessed and surface-mounted version. Depending on the variant, an area can be illuminated with pinpoint accuracy or over a medium area. Depending on requirements, both versions are available with 15°, 30° and 65° optics. The luminaire - whether recessed or surface-mounted - is connected via an A-coded M12 plug connection with reverse polarity protection. The CENALED SPOT Aufbau DC is mounted directly in the working area of a machine. There are three symmetrically arranged threaded holes for M6 screws on the back of the luminaire with a radius of 50 mm. Alternatively, the surface-mounted LED luminaire can also be supplemented with a movable, optional luminaire holder. Thus, the luminaire can still be easily and flexibly aligned after mounting. Lamp luminous flux: - 1120 lm Lamp luminous efficiency: - 134 lm/W Light distribution: - direct Light colour: - 5700K 3-step MacAdam Connected load: - 24V DC ± 10% Connection (connector): - M12 A-coded Class of protection: - III Beam angle (optics): - 15° Operating temperature: - -10 °C - +50 °C (14 °F - 122 °F) Colour rendering (Ra): - >80 Lamps lifetime: - > 100.000 h (L90/B10) Cover material: - tempered glass 4 mm (0,16“), crack-resistant
