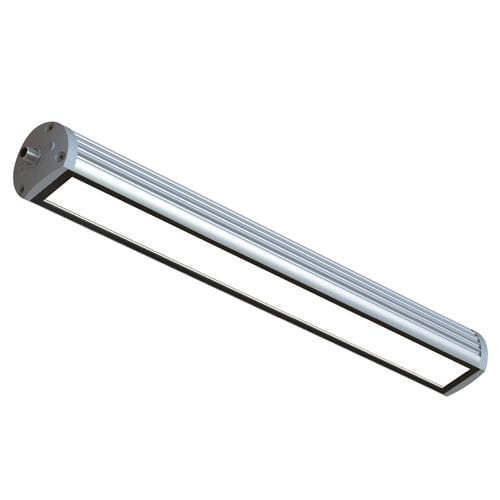

Light fixture TUBELED_70 EVO

LEDindustrialIP67

The TUBELED_70 EVO is a powerful LED machine luminaire designed for demanding industrial use. With an IP rating of IP67/IP69K, it is both dustproof and resistant to high-pressure cleaning, making it ideal for use in harsh working environments. It delivers excellent light output with a power of 74 W and a luminous flux of 11394 lm, corresponding to an efficiency of 155 lm/W. A colour temperature of 5600K 3-step MacAdam and a colour rendering index (Ra) exceeding 85 ensure uniform, flicker-free illumination, even under challenging conditions. Manufactured from aluminium and shatterproof single-pane safety glass, the TUBELED_70 EVO provides a robust and long-lasting design. Its compact construction allows for easy integration into existing systems. The operating temperature ranges from -10 °C - +50 °C (14 °F - 122 °F), enabling use in thermally demanding environments. With a service life of more than 100,000 hours (L80/B10), the TUBELED_70 EVO is extremely low-maintenance. Optionally, the luminaire can be made dimmable with appropriate accessories. Lamp luminous flux: - 11394 lm Lamp luminous efficiency: - 155 lm/W Light colour: - 5600K 3-step MacAdam Number of poles: - 3 Connected load: - 120-277V AC, 50 - 60 Hz Power supply: - integriert Connection (connector): - M12 S-coded Class of protection: - I Glare control: - diffuser film Beam angle (optics): - 100° Operating temperature: - 14 °F - 122 °F Colour rendering (Ra): - >85 Lamps lifetime: - > 100,000 h (L80/B10) Height [B] x Width [C]: - 59,5 mm x 70 mm (~2,34“ x ~2,76“) Length [A]: - 1580 mm (~62,2“) Weight (net): - 4400 g (~155 oz) Gross weight: - 5830 g (~206 oz) Risk group (DIN EN 62471): - free group Markings: - CE, UKCA, ETL Listed (5003529)
