Lamp DOMELED

LEDIP67dome

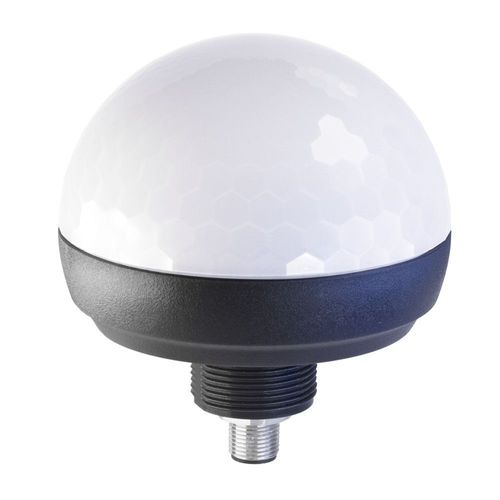

The DOMELED is an LED surface-mounted lamp with a diameter of 90 mm (~3,54“), distinguished by its compact design and wide range of possible uses. Equipped with a multi-colour LED chip, the lamp can display various standard colours such as White, Red, Green, Blue, and Yellow. The translucent cover ensures uniform light distribution with an optic of 180°, providing excellent visibility from all directions. The DOMELED delivers a high luminous efficacy of 160 lm/W at a colour temperature of 5000K (daylight white). Thanks to the protection class IP67, the lamp is water- and dust-tight, making it ideal for demanding environments. The operating temperature range from -20 °C - +50 °C (-4 °F - 122 °F) and the service life of > 100,000 h (L80/B10) ensure a reliable long-term lighting solution. White lamp luminous flux: - 551 lm Lamp luminous efficiency: - 160 lm/W Light colour white: - 5000K (daylight white) Lamp luminous flux RED: - 197 lm Lamp luminous flux GREEN: - 466 lm Lamp luminous flux YELLOW: - 303 lm Light distribution: - direct Number of poles: - 8 Connected load: - 24 V DC -5 / +10% Power supply: - external Connection (connector): - M12 A-coded Class of protection: - III Beam angle (optics): - 180° Operating temperature: - -20 °C - +50 °C (-4 °F - 122 °F) Colour rendering WHITE (Ra): - >85 Lamps lifetime: - > 100,000 h (L80/B10) Housing material: - PC Height [B] x Width [C]: - 99 mm x 90 mm (~3,9“ x ~3,54“) Length [A]: - 90 mm (~3,54“) Mounting: - optional Weight (net): - 150 g (~5 oz) Gross weight: - 190 g (~7 oz)
