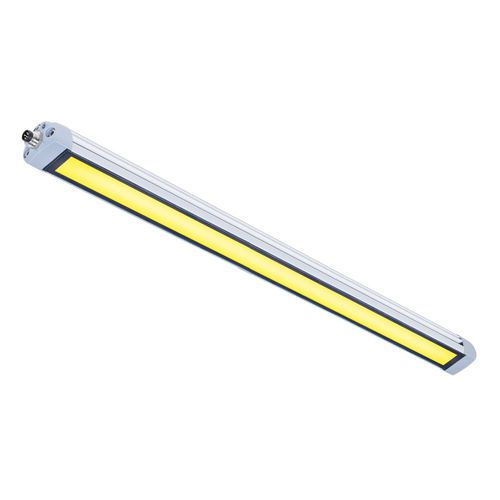

Light fixture TUBELED_25 RGB-W

LEDfor machinesIP67

LED surface-mounted light TUBELED_25 RGB-W, RGB-W LED chips in clusters, white light: 5000K 3-step MacAdam, only approx. 23 mm mounting height, length 870 mm (~34,25“), protection class IP67 - thus dust and liquid proof, suitable for machines and plants as well as areas in automation and infrastructure. LED hybrid luminaire for lighting and signaling: The TUBELED_25 is designed to illuminate and signal technical equipment, automation and machine tools of the upcoming IoT generation. The luminaire is very slim, with only a flat design and is suitable for tight installation situations. With shatterproof tempered glass, aluminum housing and the associated high degree of protection, the LED luminaire is ideally suited for illuminating work areas on CNC machines as well as systems in automation. White lamp luminous flux: - 3840 lm Lamp luminous efficiency: - ~159 lm/W Light colour white: - 5000K 3-step MacAdam Lamp luminous flux RED: - 460 lm Lamp luminous flux GREEN: - 840 lm Power consumption BLUE: - ~7,2 W Lamp luminous flux BLUE: - 280 lm Light distribution: - direct Connected load: - 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) Connection (connector): - M8 B-coded Class of protection: - III Glare control: - diffused safety glass Beam angle (optics): - 100° Operating temperature: - -30 °C - +55 °C (-22 °F - 131 °F) Colour rendering WHITE (Ra): - >85 Lamps lifetime: - > 100,000 h (L80/B10) Cover material: - tempered glass, shatterproof Height [B] x Width [C]: - ~23 mm x ~28 mm (~0,91“ x ~1,1“) Length [A]: - 870 mm (~34,25“) Weight (net): - 790 g (~28 oz) Gross weight: - 870 g (~31 oz) Risk group (DIN EN 62471): - free group
