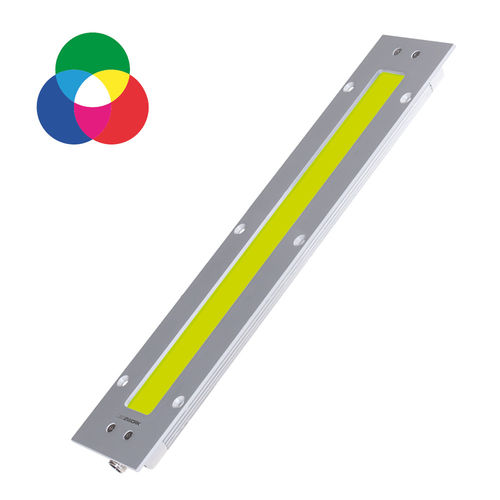

Light fixture TUBELED_40 II integrated RGB-W

LEDIP69Kflashing

Robust LED machine luminaire with signalling function for installation in standardised or prepared light shafts of machines and systems, LED chips Daylight white + RGB LED chips, in 5 standardised lengths and 2 widths for the most common installation shafts, installed just 3 mm flat, IP 67/IP69K, oil-resistant, chip-proof, CNC suitable The LED hybrid luminaire for illuminating and signalling e.g. status changes in the working areas of machines and systems. The LED luminaire is only flat, CNC suitable and convinces with high light power as well as with a function for signalling by flashing or changing the light colour. White lamp luminous flux: - 2430 lm Lamp luminous efficiency: - ~126 lm/W Light colour white: - 5000K 3-step MacAdam Lamp luminous flux RED: - 480 lm Lamp luminous flux GREEN: - 690 lm Lamp luminous flux BLUE: - 300 lm Light distribution: - Light Forming Technolology Connected load: - 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) Connection (connector): - M12 A-coded Class of protection: - III Glare control: - diffused safety glass Beam angle (optics): - 100° Operating temperature: - -30 °C - +60 °C (-22 °F - 140 °F) Colour rendering WHITE (Ra): - >80 Lamps lifetime: - > 100,000 h (L80/B10) Cover material: - tempered glass, shatterproof Height [B] x Width [C]: - 32 mm x 78 mm (~1,26“ x ~3,07“), aperture 3 mm (~0.12") built-up Length [A]: - 700 mm (~27,56“) Weight (net): - 950 g (~34 oz) Gross weight: - 1350 g (~48 oz) Risk group (DIN EN 62471): - free group Markings: - CE, UKCA, ETL Listed (5003529), D mark Made in: - Germany Feature: - RGB-W: Illumination and beacon in one light; connection
