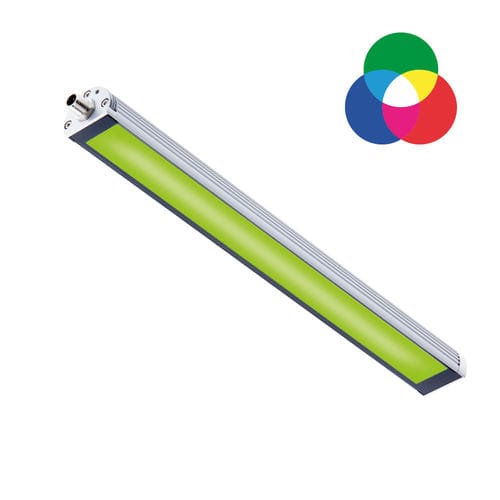

Light fixture TUBELED_40 II RGB-W

LEDIP67IP69K

Robust and slim LED machine luminaire with signalling function, power-optimised power version, LED chips Daylight white + RGB LED chips, flat design, IP 67/IP69K, oil-resistant, chip-proof, CNC suitable The LED hybrid luminaire for lighting and signalling is available as a power-optimised ECO version and as a luminous flux-optimised power version. The luminaire has a flat design only and is suitable for CNC. On the one hand, the luminaire convinces with powerful illumination of working areas and on the other hand, it has a signalling function by flashing or changing the light colour. In this way, for example, changes of state in the working areas of machines and systems can be signalled in colour. White lamp luminous flux: - 7290 lm Lamp luminous efficiency: - ~126 lm/W Light colour white: - 5600K 3-step MacAdam Lamp luminous flux RED: - 1440 lm Lamp luminous flux GREEN: - 2070 lm Lamp luminous flux BLUE: - 900 lm Light distribution: - Light Forming Technolology Connected load: - 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) Connection (connector): - M12 A-coded Class of protection: - III Glare control: - diffused safety glass Beam angle (optics): - 100° Operating temperature: - -30 °C - +60 °C (-22 °F - 140 °F) Colour rendering WHITE (Ra): - >80 Lamps lifetime: - > 100,000 h (L80/B10) Cover material: - tempered glass, shatterproof Height [B] x Width [C]: - 29 mm x 40 mm (~1,14“ x ~1,57“) Length [A]: - 1540 mm (~60,63“) Weight (net): - 2020 g (~71 oz) Gross weight: - 2370 g (~84 oz) Risk group (DIN EN 62471): - free group Markings: - CE, UKCA, ETL Listed (5003529), D mark Mounting accessories: - optional Made in: - Germany Feature: - RGB-W: Illumination and beacon in one light; connection
