2-way solenoid valve / total isolation
LFV series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

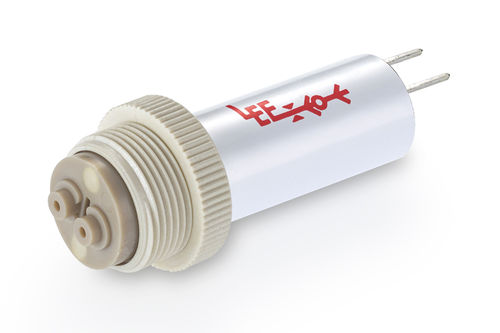

2-way solenoid valve / total isolation 2-way solenoid valve / total isolation - LFV series
{{requestButtons}}

Characteristics

  • Ports/positions:

    2-way

  • Other characteristics:

    total isolation

  • Temperature:

    Min.: 1 °C (34 °F)

    Max.: 49 °C (120 °F)

  • Pressure:

    30 psi

  • Voltage:

    12 V, 24 V

Description

The LFV Series solenoid valves are chemically inert, isolation style valves with zero dead volume. Available in a 2-way normally closed model, the valves are rated for bidirectional flow and use a contoured internal flow path design that allows for complete flushing capability. This contoured flow path also minimizes damage to any sensitive fluids passing through the valve. The low internal volume reduces the amount of fluid required to fill the system (otherwise known as transport volume), further reducing the sample and reagent requirements.

These valves are generally used in medical and scientific applications in markets such as in vitro diagnostics, human genomics and biotechnology. The following general performance characteristics are offered in this product platform:

Zero Dead Volume
Low Internal Volume
Operating Pressures up to 30 psig
Standard Voltages Available: 12 and 24 Vdc
Different Lohm Rates: 1000, 1300 and 2000
Available Seal Elastomers: EPDM, FKM and FFKM
Low Power Consumption
Multiple Styles: ¼-28 Port, 062 MINSTAC, Flange Mount, Barbed Port and Coupling Screw Mount.
