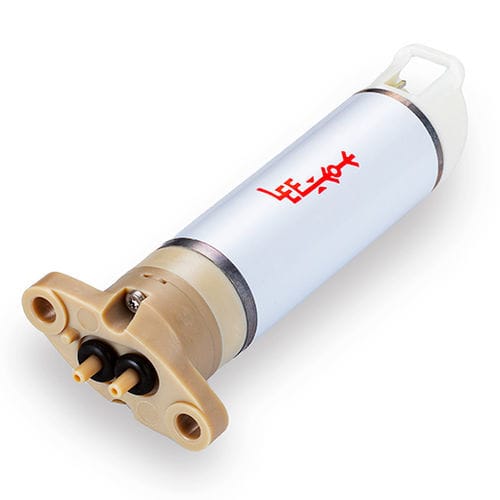

Diaphragm pump LPL series
for chemicalssolenoid-drivenself-priming

Diaphragm pump - LPL series - THE LEE COMPANY - for chemicals / solenoid-driven / self-priming
Diaphragm pump - LPL series - THE LEE COMPANY - for chemicals / solenoid-driven / self-priming
Diaphragm pump - LPL series - THE LEE COMPANY - for chemicals / solenoid-driven / self-priming - image - 2
Diaphragm pump - LPL series - THE LEE COMPANY - for chemicals / solenoid-driven / self-priming - image - 3
Diaphragm pump - LPL series - THE LEE COMPANY - for chemicals / solenoid-driven / self-priming - image - 4
Diaphragm pump - LPL series - THE LEE COMPANY - for chemicals / solenoid-driven / self-priming - image - 5
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
diaphragm
Fluid
for chemicals
Operation
solenoid-driven
Priming
self-priming
Mobility
stationary
Domain
industrial, for the petrochemical industry, laboratory, for medical applications, for the automotive industry
Applications
volumetric dispensing, high-precision
Voltage
24 V, 12 V
Protection level
standard
Other characteristics
compact, small
Pressure

5 psi

Power

Min.: 2 W
(0 hp)

Max.: 2.5 W
(0 hp)

Length

54 mm
(2 in)

Width

19.1 mm
(0.75 in)

Height

34 mm
(1.34 in)

Description

This miniature (16 mm), solenoid-driven fixed volume dispense pump is available in 50 µL standard models, with other dispense volumes available upon request. Featuring a compact, chemically inert, self-priming design, this pump aspirates an accurate volume of fluid when the solenoid is energized and dispenses the full volume of fluid when de-energized. Integrated check valves, together with a unique housing design and diaphragm seal, prevent siphoning when the dispense point is positioned above the fluid reservoir. Each pump is customizable and 100% tested to ensure performance. Features: Chemically Inert Self-Priming Maintenance Free Design Dispense Volume Range: 25 – 50 µL Anti-Siphoning Design Low Power Consumption
