- Constant-torque hinge
- LEECO Technologies Corporation

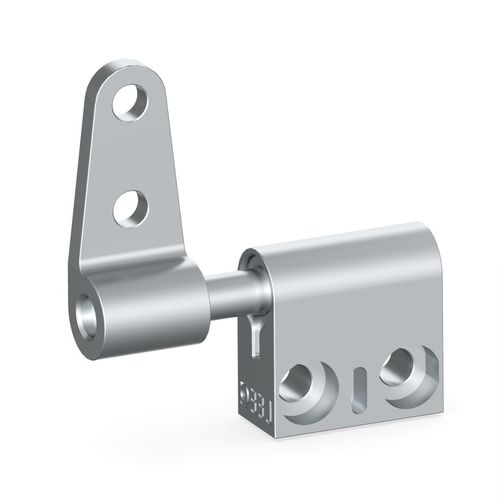

Constant-torque hinge QM7Czamakzinc-coated steelscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- constant-torque
- Material
- zamak, zinc-coated steel
- Installation
- screw-in
- Finish
- painted
- Opening angle
- 360°
- Applications
- for panels
- Other characteristics
- asymmetrical, torque-resistant
- Length
29.97 mm
(1.18 in)- Width
31.68 mm
(1.247 in)- Thickness
7 mm
(0.276 in)- Torque
Max.: 1.1 Nm
(0.81 ft.lb)Min.: 0.5 Nm
(0.37 ft.lb)
Description
Applications:
Display panels, industrial enclosures, office equipment, housing appliance, medical equipment…
Torque ratings:
Symmetric: 0.5, 0.7 and 0.9Nm
Asymmetric: 0.7, 0.9 and 1.1Nm - (high torque direction)
Cycle life: Over 25,000 cycle life within ±20% of static torque specification
Materials: Zinc alloy, steel and grease
270 degree shaft rotation
Nature or black oxide finish
M3 or #4 screw mounting hole
Zero backlash
Minimal or no springback
RoHS and REACH compliant
