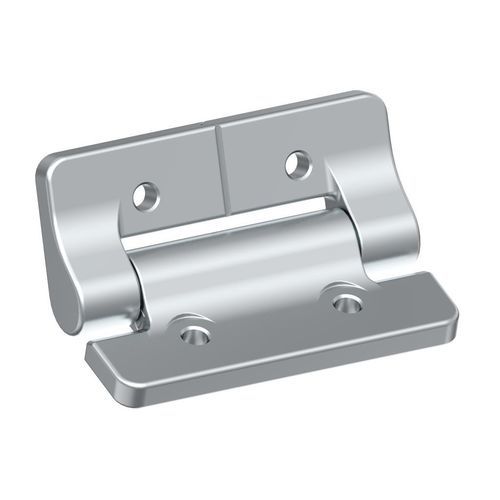

Constant-torque hinge QM15
zinc alloy270°for heavy-duty applications

Constant-torque hinge - QM15 - LEECO Technologies Corporation - zinc alloy / 270° / for heavy-duty applications
Constant-torque hinge - QM15 - LEECO Technologies Corporation - zinc alloy / 270° / for heavy-duty applications
Add to favorites
Compare this product
Go to the LEECO Technologies Corporation website for more information

Characteristics

Type
constant-torque
Material
zinc alloy
Opening angle
270°
Applications
for heavy-duty applications
Other characteristics
torque-resistant, large
Length

76.2 mm
(3 in)

Width

57.15 mm
(2.25 in)

Thickness

14.7 mm
(0.579 in)

Torque

Max.: 6.1 Nm
(4.5 ft.lb)

Min.: 2.3 Nm
(1.7 ft.lb)

Description

QM15 Constant Torque Hinge APPLICATIONS: - Heavy duty lid, display panels, POS, outdoor application, industrial enclosures, headrest cushions, office equipment, household appliance, medical equipment. TORQUE RATINGS: - Symmetric: 2.3, 3.4, 4.2, and 5.1 Nm - Asymmetric: 3.4, 4.2, 5.1 and 6.1 Nm (high torque direction) CYCLE LIFE: - Over 25,000 cycle life within ±20% of static torque specification MATERIALS: - Zinc alloy, steel, grease and o-ring DIMENSIONS: - 14.70mm x 57.15mm x 76.20mm OPENING ANGLES: - 270 degree shaft rotation INSTALLATION: - Mounting holes accept M5 or #10 screws SURFACE FINISH: - Natural finish - Black paint finish CUSTOMIZATION: - Customized torque is available - Customization of select design elements is also available CERTIFICATIONS AND COMPLIANCE: - RoHS and REACH compliant OTHERS: - Zero backlash - Minimal or no springback ENVIRONMENTAL PERFORMANCE: - Operating temperature: -20°C to 65°C - Oil ring seals for protection against environmental contamination
Go to the LEECO Technologies Corporation website for more information

Other LEECO Technologies Corporation products

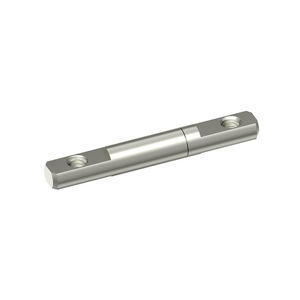

Constant torque hinge
