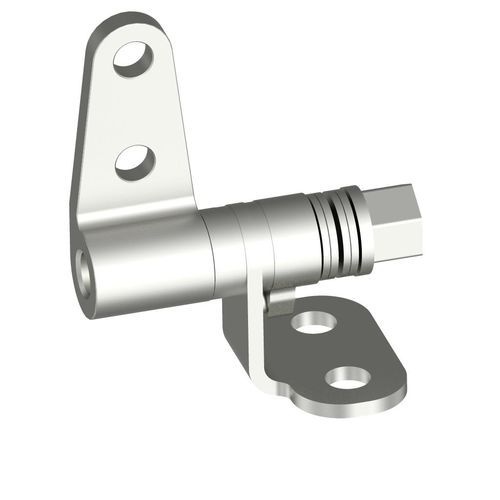

Friction hinge LL7Azinc-coated steelscrew-in270°
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Material
- zinc-coated steel
- Installation
- screw-in
- Opening angle
- 270°
- Other characteristics
- locking
- Length
26.04 mm
(1.025 in)- Width
31.38 mm
(1.235 in)
Description
APPLICATIONS:
Display panels, industrial enclosures, office equipment, housing appliance, medical equipment...
TORQUE RATINGS:
Symmetric: 0.4 - 0.9Nm
Static torque could be specified at every 0.1 Nm (About 0.9 lb-in) interval within range given above
CYCLE LIFE:
Over 25,000 cycle life within ±20% of static torque specification
MATERIALS:
Zinc alloy, steel and grease
Self locking feature
270 degree of rotation
Natual and Plating finish
M3 or #4 screw mounting hole
backlash < 2.5°
Minimal or no springback
RoHS compliant
