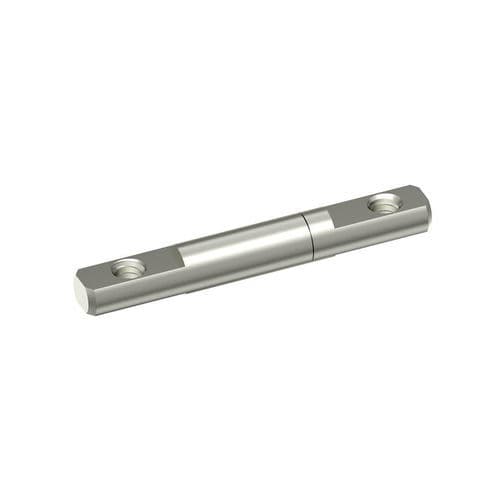

Friction hinge BH2B
steelscrew-in360°

Friction hinge - BH2B - LEECO Technologies Corporation - steel / screw-in / 360°
Friction hinge - BH2B - LEECO Technologies Corporation - steel / screw-in / 360°
Add to favorites
Compare this product
Go to the LEECO Technologies Corporation website for more information

Characteristics

Type
friction
Material
steel
Installation
screw-in
Opening angle
360°
Applications
for panels
Other characteristics
small, adjustable, threaded
Length

17.7 mm
(0.697 in)

Width

2.5 mm
(0.098 in)

Thickness

2.5 mm
(0.098 in)

Torque

0.03 Nm
(0.02 ft.lb)

Description

APPLICATIONS: Handheld device, Small box lid, Small Panel cover… TORQUE RATINGS: Symmetric: 0.025Nm CYCLE LIFE: Over 10,000 cycle life within ±50% of static torque specification MATERIALS: Steel and grease DIMENSIONS:         2.50mm x 2.50mm x 17.70mm OPENING ANGLES:         360 degree shaft rotation INSTALLATION:         M1.6 screw threaded holes x 2 SURFACE FINISH:         Plating finish CUSTOMIZATION:         Customized torque is available         Customization of select design elements is also available CERTIFICATIONS AND COMPLIANCE:         RoHS and REACH compliant OTHERS:         Zero backlash         Minimal or no springback TECHNICAL DRAWING:         https://leecotech.com/userfiles/files/BH2B-friction-hinge.pdf ENVIRONMENTAL PERFORMANCE:         Operating temperature: -20°C to 65°C FAQ/SUPPORTS:
Go to the LEECO Technologies Corporation website for more information
