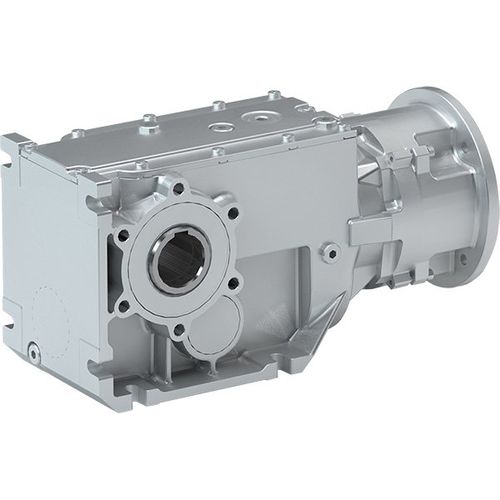

Bevel gearbox g500-B seriesright anglehollow-shaft50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 50 - 100 Nm, 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 500 - 1000 Nm, 1 - 2 kNm, 10 - 20 Nm, 5 - 10 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm
- Configuration
- compact, flange
- Number of stages
- two-stage, three-stage, four-stage
- Performance
- high-efficiency, low-backlash, high-torque
- Other characteristics
- IP65
- Power
Max.: 55 kW
(74.78 hp)Min.: 0.06 kW
(0.08 hp)- Gear ratio
Max.: 3,600 unit
Min.: 4 unit
Description
The efficient bevel gearboxes are characterized by high permissible radial forces, closely stepped ratios and low backlash.
Highlights
Highly efficient right-angle gearbox in a compact design for space-saving installation
Shaft dimensions in line with market standard and standardized flanges for easy machine integration
Low backlash and high torsional rigidity ensure exact positioning results
