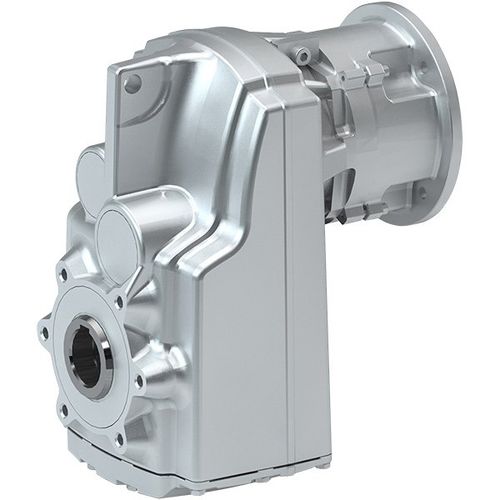

Helical gear gearbox g500-S parallel-shafthollow-shaft100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- helical gear
- Shaft orientation
- parallel-shaft
- Shaft configuration
- hollow-shaft
- Torque
- 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 50 - 100 Nm, 1 - 2 kNm, 1 - 5 Nm, 20 - 50 Nm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm, 10 - 20 Nm, 5 - 10 Nm
- Mounting
- shaft-mounted
- Number of stages
- two-stage, three-stage, four-stage
- Performance
- high-efficiency, high-precision, low-backlash
- Other characteristics
- IP65
- Power
Max.: 55 kW
(74.78 hp)Min.: 0.12 kW
(0.16 hp)- Gear ratio
Max.: 4,300 unit
Min.: 3 unit
Description
The slim shaft-mounted helical gearboxes are characterized by high permissible radial forces, closely stepped ratios and low backlash.
Highlights
Slim design saves installation space of the machine
Shaft dimensions in line with market standard and standardized flanges for easy machine integration
High accuracy with axial output provide for the highest efficiency
Catalogs
No catalogs are available for this product.
See all of Lenze SE‘s catalogsOther Lenze SE products
