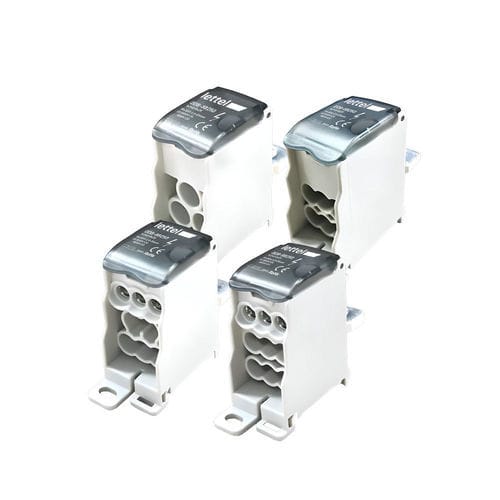

Power distributor DDB-XB250

IP20DIN rail

Description
Unipolar distribution blocks rated 250 A with 3 to 9 outputs, designed to distribute high-power supply from the output of a molded-case circuit breaker. Suitable for industrial and commercial installations, these blocks simplify wiring, increase reliability and reduce intermediate connections.

Electrical characteristics

• Rated current: 250 A
• Insulation voltage: 1000 V
• Available configurations:
  • 3 outputs – cross-section 25 mm²
  • 6 outputs – cross-section 16 mm²
  • 8 outputs – cross-section 16 mm²
  • 9 outputs – cross-section 10 mm²

Physical

• Conductor: high-conductivity tinned copper
• Enclosure: technical thermoplastic UL94-V0
• Finish: grey RAL7035
• Connection: direct on the output of molded-case circuit breaker
• Mounting: DIN rail, surface-mounted or on circuit breaker
• Protection rating: IP20
• Architecture: compact design for panel integration
• Identification: area provided for a colored marker to identify the distributed conductor

Functions and applications

• Function: distribution of a high-power supply to several feeders while ensuring continuity of service and reliability.
• Applications: industrial and commercial electrical installations, distribution panels and cabinets requiring controlled power distribution.
• Usage recommendations:
  • Select the appropriate configuration based on the number of feeders and required cross-sections.
  • Respect the rated current to ensure safety and longevity.
  • Use conductors matching the recommended cross-sections for each output.
  • Apply correct tightening torques to ensure reliable connections.
  • Implement periodic inspection of connections to prevent overheating risks.

Associated accessories

• Colored markers for identification of distributed conductors

Variants and order codes
Order code | Primary current | Number of outputs | Stock status
DDB-3B250 | 250A | 3 | instock
DDB-6B250 | 250A | 6 | instock
DDB-8B250 | 250A | 8 | instock
DDB-9B250 | 250A | 9 | instock

Documents

• Range of distribution blocks (presentation PDF available in the download area)

Technical specifications

• Rated current: 250 A
• Insulation voltage: 1000 V
• Cross-sections by configuration: 3 outputs = 25 mm², 6/8 outputs = 16 mm², 9 outputs = 10 mm²
• Conductor: tinned copper
• Enclosure: UL94-V0 thermoplastic
• Finish: grey RAL7035
• Connection: direct output to molded-case circuit breaker
• Mounting: DIN rail / surface-mounted / on circuit breaker
• Protection rating: IP20
• Architecture: compact for panel integration
