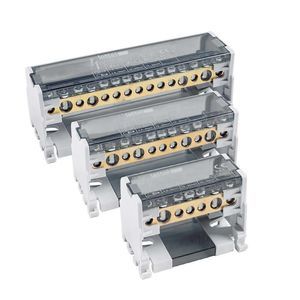

Copper busbar DDB-1B160

galvanised steelcurrenthigh-power

Overview
Neutral busbar 160 A with 14 connections designed to complement distribution busbars and optimize neutral distribution in industrial and commercial electrical panels.

Technical characteristics

• Electrical:
  • Rated current: 160 A
  • Number of connections: 14
  • Holes (quantity and diameter): 4 x Ø8.5 mm; 10 x Ø7.2 mm
  • Cable cross-sections: For Ø8.5 mm: flexible with ferrules 10–25 mm² / solid 10–35 mm²; for Ø7.2 mm: flexible with ferrules 1.5–16 mm² / solid 2.5–16 mm²
  • Tightening torque: 2–3 Nm
  • Peak short-circuit current (IPK): 35 kA
  • Icw: 6.2 kA
• Physical:
  • Conductive block: high-conductivity copper
  • Screws: zinc-plated steel
  • Mounting: integration into electrical panel
  • Dimensions (L x H x D): 168 x 38 x 42 mm

Functions
The additional neutral busbar 160 A is intended to complement high-power distribution busbars by providing extra neutral connection points. It increases distribution capacity in high-current installations while ensuring appropriate electrical withstand.

Applications
Suitable for industrial and commercial high-power installations requiring a large number of connections. Used as a complement to 160 A distribution busbars in switchboards, main distribution panels and multi-feed installations.

Usage recommendations

• Respect the permissible cable cross-sections for each terminal type.
• Apply a tightening torque of 2 to 3 Nm to ensure reliable electrical contact.
• Disconnect power before any intervention.
• Use ferrules for flexible cables to ensure an optimal connection.
• Regularly check terminal tightening and the general condition of the busbar.
• Do not exceed rated current and short-circuit withstand values (Icc and Icw).

Technical specifications

• Rated current: 160 A
• Number of connections: 14
• Holes: 4 x Ø8.5 mm; 10 x Ø7.2 mm
• Cable sections: Ø8.5 mm → flexible with ferrules 10–25 mm² / solid 10–35 mm²; Ø7.2 mm → flexible with ferrules 1.5–16 mm² / solid 2.5–16 mm²
• Tightening torque: 2–3 Nm
• Peak short-circuit current (IPK): 35 kA
• Icw: 6.2 kA
• Conductive block: high-conductivity copper
• Screws: zinc-plated steel
• Mounting: integration into electrical panel
• Dimensions (L x H x D): 168 x 38 x 42 mm
