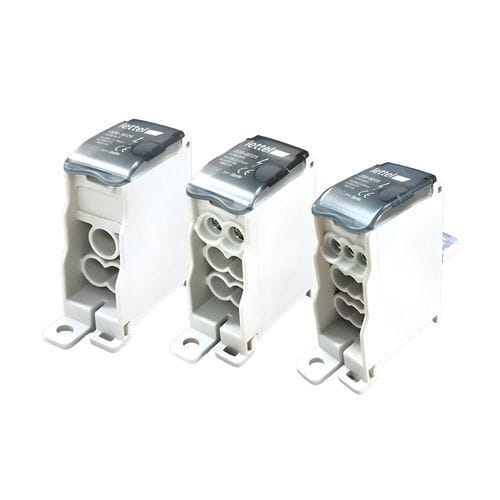

Power distributor DDB-XB125 series

IP20DIN rail

Description
The DDB-XB125 single-pole distribution blocks provide power distribution from a single input to multiple outputs. Designed for direct connection to a circuit breaker output, they simplify wiring, reduce installation time and minimize intermediate connections. Intended for commercial and industrial electrical panels requiring several medium-power outgoing feeders.

Characteristics

• Electrical:
  • Rated current: 125 A
  • Withstand voltage: 1000 V
  • Available outputs:
  • 3 outputs – 16 mm²
  • 6 outputs – 10 mm²
  • 9 outputs – 6 mm²
• Physical:
  • Conductor: tinned high-conductivity copper
  • Enclosure: thermoplastic material UL94-V0
  • Color: base RAL7035
  • Connection: direct on modular circuit breaker output
  • Mounting: DIN-rail, surface-mounted or on breaker
  • Ingress protection: IP20
  • Form factor: compact design for electrical panels
  • Identification: area for color marker to identify distributed conductor

Functions and usage recommendations

• Function: distribute supply from a single point to multiple outputs, connectable directly to circuit breaker output.
• Applications: electrical panels and distribution cabinets in commercial and industrial environments.
• Usage recommendations: select configuration according to number of outputs and cable cross-sections; respect 125 A rated current; use conductors compatible with indicated cross-sections; ensure proper tightening torque; perform regular inspections to prevent loosening or overheating.

Variants and ordering codes

• DDB-3B125 | 125 A | 3 outputs | instock
• DDB-6B125 | 125 A | 6 outputs | instock
• DDB-9B125 | 125 A | 9 outputs | instock

Product documents

• Range of distribution blocks (pdf, 5 MB)

Technical specifications

• Rated current: 125 A
• Withstand voltage: 1000 V
• Output sections: 3x16 mm², 6x10 mm², 9x6 mm²
• Conductor: tinned high-conductivity copper
• Enclosure: thermoplastic UL94-V0
• Ingress protection: IP20
• Mounting: DIN-rail, surface or on breaker
• Color: base RAL7035
