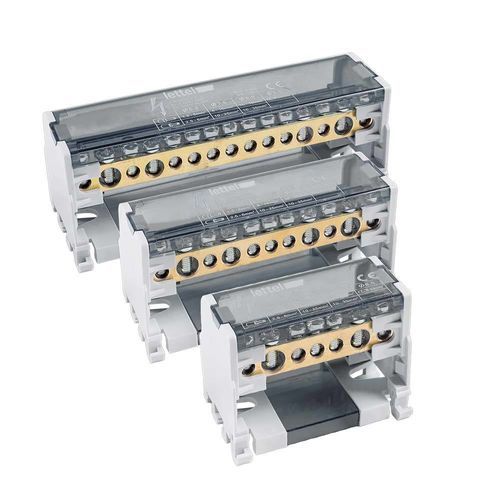

Power distributor DDB-2BE125 series

IP20DIN rail

Overview
Bipolar distribution blocks 125 A 500 V available with 7, 11 or 15 outputs. DIN-rail or surface mounting, high-conductivity copper conductor block, IP20 protection, compliant with EN 60947-7-1.

Electrical characteristics

• Nominal current: 125 A
• Nominal voltage: 500 V
• Number of poles: 2
• Number of connections per model and hole diameters:
  • DDB-207BE125 – 7 connections: 1 x Ø8.5 mm / 5 x Ø5.3 mm / 1 x Ø7.5 mm
  • DDB-211BE125 – 11 connections: 2 x Ø8.5 mm / 2 x Ø7.5 mm / 7 x Ø5.3 mm
  • DDB-215BE125 – 15 connections: 2 x Ø8.5 mm / 2 x Ø7.5 mm / 11 x Ø5.3 mm
• Cable cross-sections: For Ø8.5 mm: flexible + ferrules 10-25 mm² / solid 10-35 mm²; For Ø7.5 mm: flexible + ferrules 6-16 mm² / solid 10-25 mm²; For Ø5.3 mm: flexible + ferrules 1.5-6 mm² / solid 2.5-6 mm²
• Tightening torque: 2-3 Nm
• Peak short-circuit current (Ipk): 20 kA
• Icw: 4.5 kA

Variants (ordering codes)
Ordering code | Primary current | Rated voltage (Un) | Number of outputs | Stock status
DDB-207BE125 | 125 A | 500 V | 7 | en stock
DDB-211BE125 | 125 A | 500 V | 11 | en stock
DDB-215BE125 | 125 A | 500 V | 15 | en stock

Physical

• Conductor block: high-conductivity copper
• Screws: zinc-plated steel
• Housing: PA66-V0 base RAL7035 with removable translucent grey cover
• Mounting: DIN-rail or surface-mounted
• Protection: IP20
• Insulation: insulating plate between poles and at the back of the housing to isolate the DIN rail
• Dimensions (L x H x D): 64 x 50 x 50 mm (DDB-207BE125); 100 x 50 x 50 mm (DDB-211BE125); 130 x 50 x 50 mm (DDB-215BE125)

Functions and applications
Bipolar distribution blocks 125 A are used to distribute power from a main feed to multiple outgoing circuits. Designed for even current distribution, they feature a high-conductivity copper block to minimize losses and withstand electrical stress. The bipolar design permits simultaneous management of phase and neutral. Compliant with EN 60947-7-1.

• Applications: low-voltage residential, commercial and industrial installations; electrical enclosures; sub-distribution boards; multi-circuit installations.

Usage advice

• Respect the admissible cable cross-sections for each terminal.
• Apply a tightening torque of 2 to 3 Nm.
• Disconnect power before any intervention.
• Use ferrules on flexible cables to ensure secure clamping.
• Check connection tightening periodically.

Technical specifications

• Nominal current: 125 A
• Nominal voltage: 500 V
• Number of poles: 2
• Available models: DDB-207BE125 (7 outputs), DDB-211BE125 (11 outputs), DDB-215BE125 (15 outputs)
• Hole diameters and distribution by model: see variants above
• Compatible cable diameters: Ø8.5 / Ø7.5 / Ø5.3 mm (details above)
• Tightening torque: 2-3 Nm
• Peak short-circuit current (Ipk): 20 kA
• Icw: 4.5 kA
• Conductor block: high-conductivity copper
• Housing: PA66-V0 RAL7035, translucent grey cover
• Mounting: DIN-rail or surface-mounted
• Protection: IP20
• Standard: EN 60947-7-1
• Dimensions by model: 64 x 50 x 50 mm; 100 x 50 x 50 mm; 130 x 50 x 50 mm
