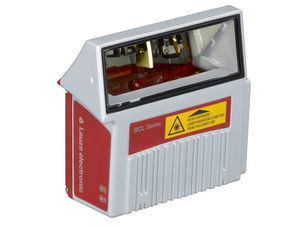

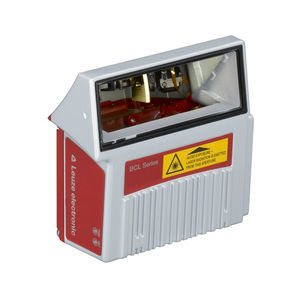

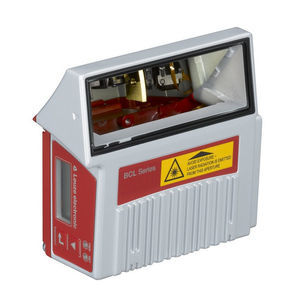

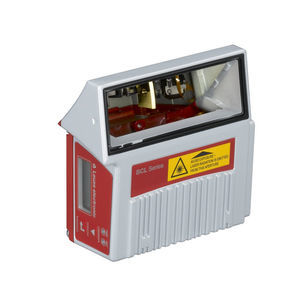

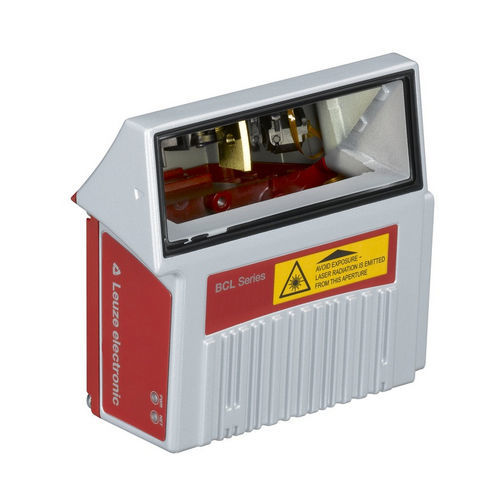

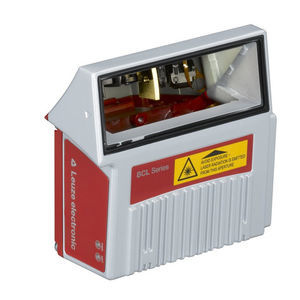

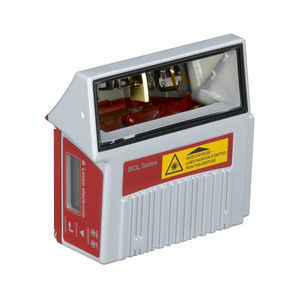

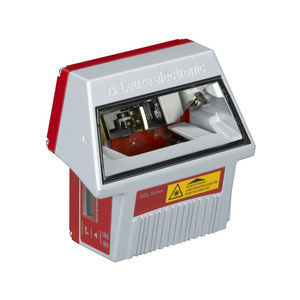

Fixed barcode reader BCL 304i R1 F 100

1DlaserUSB

Functions - Alignment mode AutoConfig AutoControl AutoReflAct Code fragment technology LED indicator Reference code comparison Code types, readable - 2/5 Interleaved Codabar Code 39 Code 93 Code 128 EAN 8/13 GS1 Databar Expanded GS1 Databar Limited GS1 Databar Omnidirectional UPC Scanning rate, typical - 1,000 scans/s Bar codes per reading gate, max. number - 64 Piece(s) Reading distance - 70 ... 440 mm Light source - Laser, Red Wavelength - 655 nm Laser class - 1, IEC/EN 60825-1:2014 Modulus size - 0.3 ... 0.5 mm Reading method - Raster scanner with deflecting mirror Beam deflection - By means of rotating polygon mirror wheel + deflecting mirror Light beam exit - Lateral with deflecting mirror Supply voltage UB - 18 ... 30 V, DC Power consumption, max. - 4.5 W Number of inputs/outputs selectable - 2 Piece(s) Type - PROFIBUS DP Function - Process Classification - V1 Type - USB 2.0 Function - Service Number of connections - 1 Piece(s) Function - BUS IN BUS OUT Connection to device Data interface PWR / SW IN / OUT Service interface Type of connection - Plug connector, It is essential to use a connection unit when commissioning the device. No. of pins - 32 -pin Type - Male Design - Cubic Dimension (W x H x L) - 103 mm x 44 mm x 96 mm Housing material - Metal Metal housing - Diecast aluminum Lens cover material - Glass Net weight - 350 g Housing color - Red Silver Type of fastening - Dovetail grooves Fastening on back Via optional mounting device Type of display - LED Number of LEDs - 2 Piece(s) Type of configuration - Via web browser
