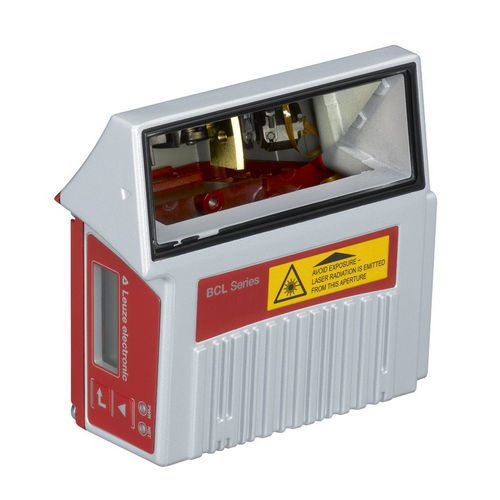

Fixed barcode reader BCL 338i S M 100 D F007

1DlaserUSB

Functions - Alignment mode AutoConfig AutoControl AutoReflAct Code fragment technology LED indicator Reference code comparison Code types, readable - 2/5 Interleaved Codabar Code 39 Code 93 Code 128 EAN 8/13 GS1 Databar Expanded GS1 Databar Limited GS1 Databar Omnidirectional UPC Scanning rate, typical - 1,000 scans/s Bar codes per reading gate, max. number - 64 Piece(s) Reading distance - 30 ... 290 mm Light source - Laser, Red Wavelength - 655 nm Laser class - 1, IEC/EN 60825-1:2014 Modulus size - 0.2 ... 0.5 mm Reading method - Line scanner with deflecting mirror Beam deflection - By means of rotating polygon mirror wheel + deflecting mirror Light beam exit - Lateral with deflecting mirror Supply voltage UB - 18 ... 30 V, DC Power consumption, max. - 4.5 W Number of inputs/outputs selectable - 2 Piece(s) Type - EtherCAT Function - Process Transmission protocol - EtherCAT, CoE and EoE Type - USB 2.0 Function - Configuration via software Service Number of connections - 1 Piece(s) Function - BUS IN BUS OUT Connection to device Data interface PWR / SW IN / OUT Service interface Type of connection - Plug connector, It is essential to use a connection unit when commissioning the device. No. of pins - 32 -pin Type - Male
