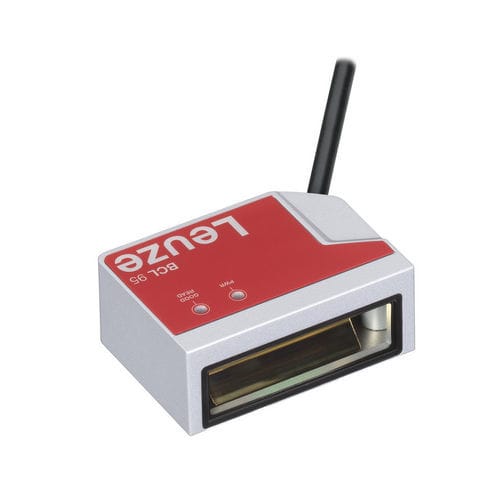

Fixed barcode reader BCL 92 SM 302

1Dlaser

Functions - Alignment mode AutoConfig I/O LED indicator Multiple read Output format selectable Reading gate control Reference code comparison Code types, readable - 2/5 Interleaved Codabar Code 32 Code 39 Code 93 Code 128 EAN/UPC EAN 8/13 EAN 128 EAN Addendum Pharmacode (available upon consultation) UPC-A UPC-E Scanning rate, typical - 600 scans/s Reading distance - 40 ... 275 mm Light source - Laser, Red Wavelength - 655 nm Laser class - 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014) Modulus size - 0.165 ... 0.5 mm Reading method - Line scanner Scanning rate - 600 scans/s Beam deflection - Via rotating polygon wheel Light beam exit - Front Supply voltage UB - 10 ... 30 V, DC Current consumption, max. - 250 mA Number of digital switching inputs - 2 Piece(s) Number of digital switching outputs - 2 Piece(s) Function - configurable Type - RS 232 Function - Process Type - RS 232 Function - Service Number of connections - 1 Piece(s) Function - Data interface Signal IN Signal OUT Voltage supply Type of connection - Cable with Sub-D Cable length - 800 mm Type - Male No. of pins - 15 -pin Design - Cubic Dimension (W x H x L) - 62 mm x 23.8 mm x 56.9 mm Housing material - Metal Metal housing - Diecast zinc Lens cover material - Glass Net weight - 210 g Housing color - Red Silver Type of fastening - Fastening thread Type of display - LED Number of LEDs - 2 Piece(s)
