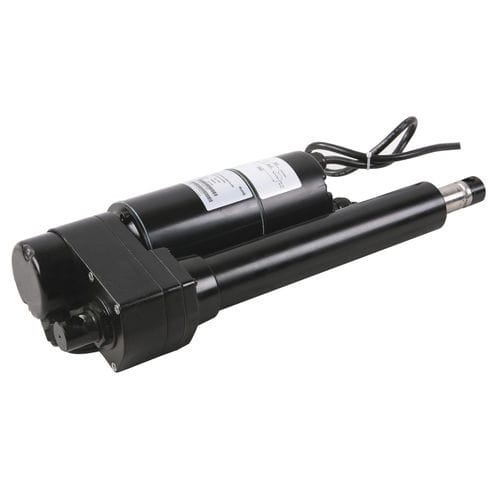

Electric actuator LBM9
linearworm gearaluminum

Electric actuator - LBM9 - Lim-Tec (Beijing) Transmission Equipment Co., Ltd. - linear / worm gear / aluminum
Electric actuator - LBM9 - Lim-Tec (Beijing) Transmission Equipment Co., Ltd. - linear / worm gear / aluminum
Electric actuator - LBM9 - Lim-Tec (Beijing) Transmission Equipment Co., Ltd. - linear / worm gear / aluminum - image - 2
Add to favorites
Compare this product

Characteristics

Type
electric
Movement
linear
Technology
worm gear
Material
aluminum, alloy
Motor
DC
Voltage
24-volt, 12-volt
Protection class
IP65, IP66, maintenance-free
Stroke

Min.: 100 mm
(3.937 in)

Max.: 600 mm
(23.622 in)

Force

4,500 N, 6,000 N, 13,600 N

Speed

Min.: 11 mm/s

Max.: 65 mm/s

Operating Temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Adopted aluminum alloy shell, telescopic pipe and other components, and parts of high strength plastic worm gear or powder metallurgy gear. Design specially application in medical treatment, office furniture, solar tracking and so no. light load, low noise high quality products. Linear Actuator is driven by 12/24/36/48VDC motor Working environment temperature 5 ℃ to 40 ℃ ，if need -40 ℃ to + 70 ℃, consulting local office. Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H) long-life grease, maintenance-free.
