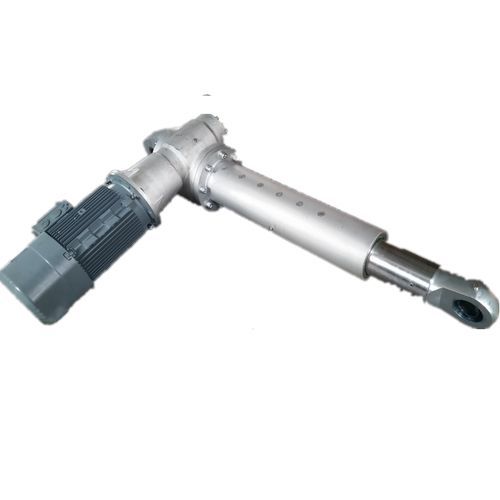

Electric actuator LBP-DC series

linearball screwDC

LIM-TEC LINEAR ACTUATOR High strength/high wear-resisting material selection, high-precision parts processing, advanced design shell concept , high bearing capacity, impact resistance, low noise, long life of high quality products, to be able to work in bad industrial environment. Acme Screw Linear Actuator LAP Series (duty cycle 30%) and ball screw Linear Actuator LBP series (100% duty cycle ) Linear actuator driven by 12/24/36/48 v dc motor, 220/380 v single-phase/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc. Linear actuator driven by 12/24 v dc motor, 220/380 v single/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc. According to the self-locking coefficient, define the self-locking performance, can realize the absolute synchronization linear actuator , with encoder can realize more precision positioning (position accuracy 0.1 mm), the accessories is numerous, can be suitable for all kinds of special occasions. Working environment temperature 5 ℃ to 40 ℃, if you need -40 ℃ to + 70 ℃. Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H) long-life grease, maintenance free.
