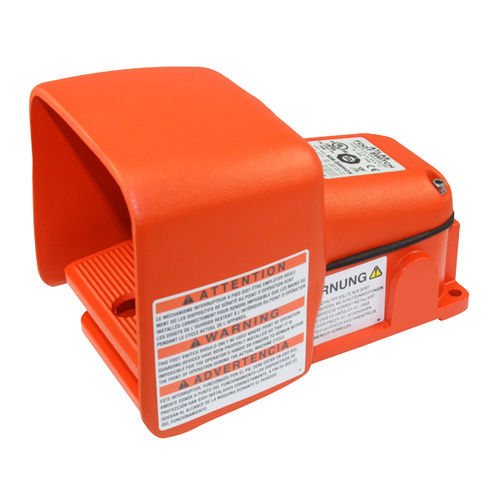

Control foot switch 937-SWHOX
electricsingle pedalDPDT

control foot switch
control foot switch
control foot switch
control foot switch
control foot switch
Add to favorites
Compare this product


Characteristics

Function
control
Technology
electric
Type
single pedal, DPDT
Other characteristics
with cover

Description

ENCLOSURE NEMA Type 1, 2, 4, 6, 6P & 13 • UL ENCLOSURE 1, 2, 4, 6, 6P & 13 • EN 60529 Degree Of Protection • IP68 • IEC 60601-2-2 PURPOSE Developed For Worldwide Applications FEATURES & BENEFITS Protected by a strong cast aluminum shield Developed for worldwide application Snap action - SPDT and DPDT with forced disconnect (positive break) on NC contacts Slow action mechanism with forced disconnect on the NC contacts - available as SPDT make before break or break before make Direct PLC interface compatible (two-circuit bifurcated contact single-pole versions) Galvanically isolated bifurcated contacts - NO and NC circuits can be wired to different loads and polarities 3 holes provided for rigid mounting to the floor or equipment Materials Treadle and housing constructed from cast aluminum for environmental durability Painted Alert Orange Single PG 16 threaded conduit entry is standard Options Oversize "O" and "OX" Shield models accept oversized safety shoes and metatarsal foot guards. The "OX" Shield has an additional 3/4" (19.1 mm) opening height as compared to the "O" shield 3/4-14 N.P.T. also available as standard for select models U.S. and other international conduit sizes and side entry available to the OEM on special order Side entry PG16 threaded conduit entry available Twin and triple models available - Special Order
