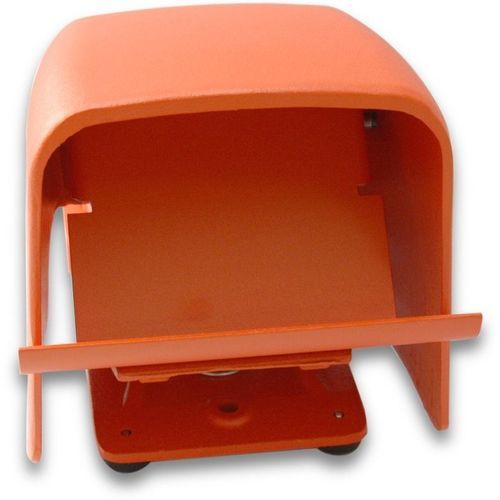

Control foot switch 511-B2OXG

securitybrakeelectric

Overview
Hercules model 511-B2OXG is an anti-trip foot switch designed to reduce unintended actuation by combining a gated OX shield with a latch trip lever; intended for industrial equipment requiring a single-stage momentary DPDT switch.

Product Details

• Model: 511-B2OXG
• Brand: Hercules
• Switch Type: Electrical, Single Stage Momentary
• Circuitry: DPDT (Form CC)
• Cable Entry: 3/4"-14 NPT threaded conduit entry (single standard)
• Housing Color: Orange
• Housing Material: Cast iron (treadle and housing)
• Shield: Gated OX Shield
• Electrical Ratings: 20 A 125-250 VAC; 1 H.P. 125-250 VAC; Heavy Pilot Duty 250 VAC Max.

Features & Benefits

• Latch trip lever must be released before treadle depression to minimize accidental activation
• Smooth trip lever release and treadle motion for consistent operation
• Dual treadle return springs and positive latching mechanism
• Neoprene cover gasket, O-rings on actuating shaft and separate ground screw for sealing and grounding
• Anti-skid rubber feet and three mounting holes for rigid floor or equipment installation

Materials

• Treadle and housing constructed from cast iron for structural strength
• Protected by a cast aluminum shield
• Paint finish: Alert Orange

Options

• Oversize "O" and "OX" shield models accept oversized safety shoes and metatarsal guards; "OX" provides an additional 3/4" (19.1 mm) opening height vs "O"
• Special dual 1/2"-14 NPT conduit entries and metric sizes available on special order
• Twin & triple models, gated variants and RF wireless versions available on special order

Enclosure
NEMA Type 2, 4 & 13; UL enclosure 2, 4 & 13; CSA enclosure 2, 4 & 13; EN 60529 Degree of Protection IP56

Purpose
Designed to prevent accidental actuation; drip-tight, dust-tight, watertight and oil-tight sealing suitable for industrial environments

Applications

• Benders
• Box Marker
• Brakes
• Chopper
• Cleaner
• Closing System
• Conveyor Systems
• Crimping Machine
• Cut Off Machines for Pipe and Tubing
• Cutter
• Cutting Machine
• Drilling Machine
• Drilling Table
• Fabricator
• Filler Removal Machine
• Folding Machine
• Food Processing Equipment
• Forming System
• Grinder
• Grinding Machine
• Lacers
• Lathes
• Lift
• Marking System
• Material Handlers
• Microscopes
• Missile Launching Control Systems
• Molding Machines
• Nibbler
• Notcher
• Oil Drilling Rigs
• Platforms
• Positioners
• Potters Wheels
• Puller
• Punching Equipment
• Rewind System
• Riveter
• Roll Groover
• Router
• Saw
• Saw Mill
• Scrap Chopper
• Sewer Cleaning Equipment
• Shears
• Shoe Machine
• Shredder
• Space Shuttle
• Spinners
• Stapler
• Surgical Equipment
• Tables
• Tester
• Thread Rolling Machine
• Threading Machine
• Trimming Beading and Forming Machines
• Beading & Forming Machines
• Tube-end Forming Machines
• Tube Expansion Device
• Turn/Mill Centers
• Turner
• Turning Centers
• Turntable
• Tying & Bundling Machines
• Voltage Control
• Water Cannon
• Welders
• Winding Equipment
• Wire Drawing System

Technical specifications

• Model: 511-B2OXG
• Switch Type: Electrical
• Action: Single Stage Momentary
• Circuitry: DPDT (Form CC)
• Cable Entries: 3/4"-14 NPT threaded entry (single standard)
• Housing Color: Orange
• Housing Material: Cast Iron (treadle and housing)
• Shields & Guards: Gated OX Shield (OX provides additional opening height vs O)
• Electrical Ratings: 20 A 125-250 VAC; 1 H.P. 125-250 VAC; Heavy Pilot Duty 250 VAC Max.
• Enclosure Ratings: NEMA Type 2, 4 & 13; UL Enclosure 2, 4 & 13; CSA Enclosure 2, 4 & 13; EN 60529 IP56
• Sealing: Neoprene cover gasket plus O-rings on actuating shaft; separate ground screw
• Mounting: Anti-skid rubber feet and three holes for rigid mounting
• Options: Oversize shields, alternate conduit entries, twin/triple models, gated models, RF wireless (special order)
