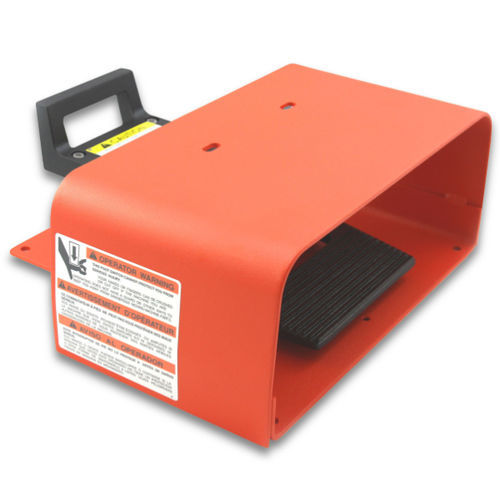

Control foot switch 592-EX

electricsingle pedalwith cover

CLASS I • DIVISION 1 • GROUP D • CLASS II • GROUP F & G: CLASS I • ZONE 1 GROUP IIA • NEMA & UL ENCLOSURE Type 2 • EN 60529 Degree or Protection • IP41 Equipment for Hazardous Locations Non sparking cast aluminum housing 4 holes provided for rigid mounting to floor or equipment The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time Aluminum full guard with integral base plate painted Alert Orange All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate Integral handle for ease of moving Waterproof model available under "600 Series" Medical Explosion-proof models available Actions - Momentary Circuitries - SPDT Cable Entries - 3/4"-14 NPT threaded entry Shields & Guards - Guarded Electrical Ratings - 15A, 125 VAC, 10A, 250 VAC, 3/4 H.P. 125 VAC, 1 H.P. 250 VAC, Heavy Pilot Duty 250 VAC Max. 3A 28 VDC
