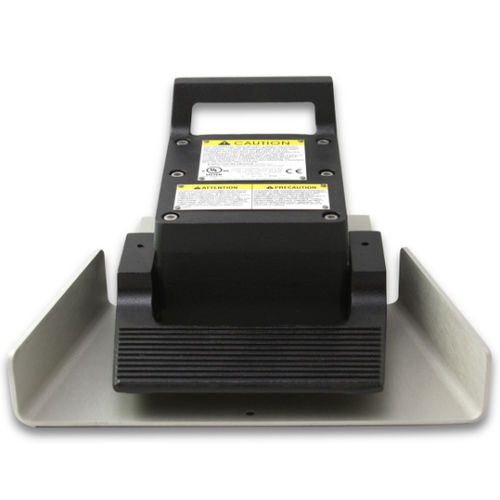

Control foot switch 601-EX
electricsingle pedalmomentary

control foot switch
control foot switch
control foot switch
control foot switch
Add to favorites
Compare this product


Characteristics

Function
control
Technology
electric
Type
single pedal, momentary
Other characteristics
explosion-proof, IP68
Applications
for medical applications

Description

CLASS 1 • DIVISION 1 • Zone 1 • GROUP IIA & IIB • EN 60529 Degree Of Protection • IP68 IEC 60601-2-2 Not For Use In Industrial Applications Non sparking cast aluminum housing The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time Two pedal models prewired with electrical interlock Medical Explosion Proof foot switch Series 600 is a UL Listed construction that allows the addition of sealing O-rings on the pivot rod and between the base and cover This is accomplished by increasing the thickness of the housing wall, without negating the integrity of the metal to metal contact required to qualify as explosion proof Aluminum base plate with nonskid conductive rubber base pad Foot switch painted black Integral handle for ease of moving Use mating connector MS or CA-3106F-18-4SW-(A105)-(F74)* which includes cable clamp, or CA-06R-18-4SW-(A105)-(F74)* which includes cable clamp Mating connector with cable clamp available from LINEMASTER®. Order as catalog number LSC-575-24 Industrial Explosion-proof models available Actions - Single Stage Momentary Circuitries - SPDT (Form "C") Cable Entries - Circular connector _ potted Housing Colors - Black Housing Materials - Cast Aluminum Switch Connections - Screw terminal Electrical Ratings - 5A, 125-250 VAC, 3A, 28 VDC
