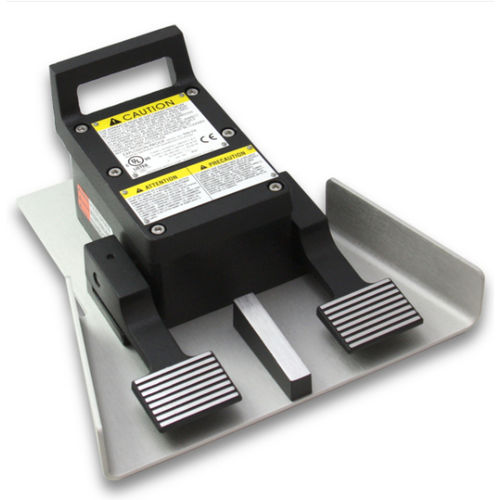

Control foot switch 596-EX
electricmomentary2 pedals

control foot switch
control foot switch
control foot switch
control foot switch
Add to favorites
Compare this product


Characteristics

Function
control
Technology
electric
Type
momentary, 2 pedals
Other characteristics
explosion-proof
Applications
for medical applications

Description

CLASS 1 • DIVISION 1 • GROUP C & D • CLASS 1 • ZONE 1 • GROUP IIA & IIB • EN 60529 Degree Or Protection • IP41 Not For Use In Industrial Applications Non sparking cast aluminum housing The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time Two pedal models prewired with electrical interlock Aluminum base plate with nonskid conductive rubber base pad Both models prewired with potted connector MS-3102R-18-4PW Two pedal model wired with an electrical interlock and supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time Foot switch painted black Integral handle for ease of moving Use mating connector MS-3106A-18-4SW, plus strain relief clamp MS-3057-10 or 10A Mating connector with cable clamp available from LINEMASTER®. Order as catalog number LSC-835 Industrial Explosion-proof models available Actions - Single Stage Momentary Circuitries - SPST-NO (Form "A") Cable Entries - Circular connector _ potted Housing Colors - Black Housing Materials - Cast Aluminum Switch Connections - Screw terminal Electrical Ratings - 5A, 125-250 VAC, 3A, 28 VDC
