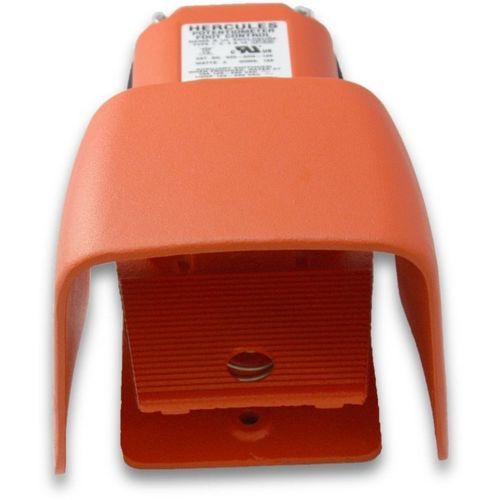

Control foot switch 500-AHO-10K

brakeelectricpotentiometer

Summary
Drip-tight, dust-tight, watertight and oil-tight pedal potentiometer. Not corded; designed for foot-operated momentary variable control.

Enclosure
NEMA Type 1, 2, 4, 13 • UL enclosure Type 1, 2, 4, 13 • EN 60529 degree of protection • IP56 (IP68 upon request).

Purpose
O Shield protection for potentiometer mechanism and operator interface.

Features & Benefits

• Rugged cast-iron treadle and housing provide stability during operation
• Neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw for reliable sealing and grounding
• Three holes for rigid mounting to floor or equipment
• Specify the maximum resistance required (standard values available)

Materials

• Treadle and housing: cast iron for strength and durability
• Protected by an oversized cast aluminum shield
• Painted Alert Orange
• Standard single 3/4-14 NPT threaded conduit entry
• Designed for use with variable-speed motor drives; available in selected 2-watt linear values
• Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance; treadle is spring-loaded and returns when pressure is removed
• Auxiliary switch contact (optional) rated 15 A, 125–250 VAC; switch operates at beginning of treadle stroke; up to three SPDT switches can be added and adjusted

Options

• Special dual 1/2-14 NPT conduit entry and metric entries available to OEM on special order
• Standard potentiometer values: 5,000 Ω or 10,000 Ω; other values available by special order
• Models available with cast aluminum base and covers (except unshielded cover, which is gray iron)

Applications

• Benders
• Box markers
• Brakes
• Choppers
• Cleaners
• Closing systems
• Conveyor systems
• Crimping machines
• Cut-off machines for pipe and tubing
• Cutters and cutting machines
• Drilling machines and tables
• Fabricators
• Filler removal machines
• Folding machines
• Food processing equipment
• Forming systems
• Grinders and grinding machines
• Lacers
• Lathes
• Lifts and platforms
• Marking systems
• Material handlers
• Microscopes
• Missile launching control systems
• Molding machines
• Nibblers
• Notchers
• Oil drilling rigs
• Positioners
• Potters' wheels
• Pullers
• Punching equipment
• Rewind systems
• Riveters
• Roll groovers
• Routers
• Saws and sawmills
• Scrap choppers
• Sewer cleaning equipment
• Shears
• Shoe machines
• Shredders
• Space shuttle and aerospace applications
• Spinners
• Staplers
• Surgical equipment
• Tables and testers
• Thread rolling and threading machines
• Trimming, beading and forming machines
• Tube-end forming and expansion devices
• Turn/mill centers, turners and turning centers
• Turntables
• Tying and bundling machines
• Voltage control
• Water cannon
• Welders
• Winding equipment
• Wire drawing systems

Product Details
500-AHO-10K
Switch Type: Linear, 2 Watt 10K ohm
Action: Momentary variable control
Circuitry: SPDT (Form C) with 1 auxiliary contact option
Cable Entry: 3/4-14 NPT threaded entry (standard)
Housing Color: Orange
Housing Material: Cast iron
Shield: Oversized cast aluminum shield
Switch Connections: Solder terminals and quick-connect terminals
Electrical Ratings: 15 A, 125–250 VAC; 1/2 HP at 125–250 VAC

Technical specifications

• Model: 500-AHO-10K
• Switch type: Linear, 2 Watt, 10K ohm
• Action: Momentary variable control
• Circuitry: SPDT auxiliary contact available (Form C)
• Cable entry: 3/4-14 NPT threaded entry (standard)
• Housing color: Orange
• Housing material: Cast iron
• Shield: Oversized cast aluminum shield
• Switch connections: Solder terminal and quick-connect terminal
• Electrical ratings: 15A, 125–250 VAC; 1/2 HP at 125–250 VAC
• Enclosure ratings: NEMA Type 1, 2, 4, 13; IP56 (IP68 upon request)
