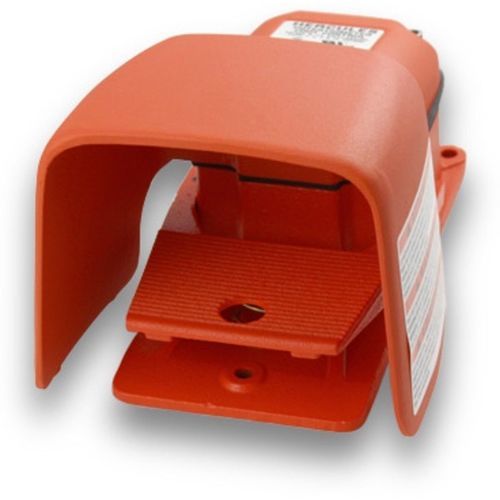

Control foot switch 500-HO-10K

brakepotentiometermomentary

Brief Description
Foot-operated (treadle) potentiometer • Momentary variable control • 10K ohm, 2W • O Shield enclosure • Not corded

Product Details (table)
500-HO-10K — $350.70

• Switch Type: Linear, 2 Watt 10K ohm
• Actions: Momentary Variable Control
• Circuitries: No Auxiliary (auxiliary contacts optional)
• Cable Entries: 3/4"-14 NPT threaded entry
• Housing Colors: Orange
• Housing Materials: Cast Iron
• Shields & Guards: Oversized shield
• Switch Connections: Solder terminal
• Electrical Ratings: 15A, 125-250 VAC, 1/2 HP 125-250 VAC

Enclosure
NEMA Type 1, 2, 4, 13 • UL ENCLOSURE Type 1, 2, 4, 13 • EN 60529 Degree of Protection • IP56 • IP68 Upon Request

Purpose
O Shield • Drip tight • Dust tight • Watertight • Oil tight

Features & Benefits

• Rugged cast metal enclosure provides stability to prevent the switch from sliding during operation
• Neoprene cover gasket and O-rings on the activating shaft plus separate ground screw for secure sealing and grounding
• Three holes provided for rigid mounting to floor or equipment
• Specify the maximum resistance required for your application

Materials

• Treadle and housing constructed from cast iron for strength and durability
• Protected by a strong cast aluminum shield
• Painted Alert Orange
• Single 3/4"-14 N.P.T. threaded conduit entry is standard (dual and metric available on special order)
• Designed for use with variable speed motor drives; available in selected 2 watt linear values
• Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance
• Treadle is spring-loaded and returns to normal position when foot pressure is removed
• Auxiliary switch contact rated at 15 A, 125-250 VAC can be added
• Switch engages at beginning of the treadle stroke; up to 3 SPDT switches can be added and adjusted for operation at any point of the stroke

Options

• Special dual 1/2"-14 N.P.T. conduit entry and metric entries available on special order
• Available potentiometer values: 5,000 ohm and 10,000 ohm standard; other values by special order
• Models available with cast aluminum base and covers (except unshielded cover which is gray iron)

Applications

• Benders
• Box markers
• Brakes
• Choppers
• Cleaning equipment
• Closing systems
• Conveyor systems
• Crimping machines
• Cut-off machines for pipe and tubing
• Cutters
• Cutting machines
• Drilling machines
• Drilling tables
• Fabricators
• Filler removal machines
• Folding machines
• Food processing equipment
• Forming systems
• Grinders
• Grinding machines
• Lacers
• Lathes
• Lifts
• Marking systems
• Material handlers
• Microscopes
• Missile launching control systems
• Molding machines
• Nibblers
• Notchers
• Oil drilling rigs
• Platforms
• Positioners
• Potter's wheels
• Pullers
• Punching equipment
• Rewind systems
• Riveters
• Roll groovers
• Routers
• Saws
• Sawmills
• Scrap choppers
• Sewer cleaning equipment
• Shears
• Shoe machines
• Shredders
• Space shuttle control systems
• Spinners
• Staplers
• Surgical equipment
• Tables
• Testers
• Thread rolling machines
• Threading machines
• Trimming, beading and forming machines
• Beading & forming machines
• Tube-end forming machines
• Tube expansion devices
• Turn/mill centers
• Turners
• Turning centers
• Turntables
• Tying & bundling machines
• Voltage control
• Water cannons
• Welders
• Winding equipment
• Wire drawing systems

Technical specifications

• Model: 500-HO-10K
• Price (US): $350.70
• Switch Type: Linear, 2 Watt 10K ohm
• Action: Momentary Variable Control
• Circuitry: No Auxiliary (auxiliary contacts optional)
• Cable Entry: 3/4"-14 NPT threaded entry (single standard; dual and metric available on special order)
• Housing Color: Orange
• Housing Material: Cast Iron (base and cover options available)
• Shield: Oversized cast aluminum shield
• Switch Connections: Solder terminal
• Electrical Ratings: 15A, 125-250 VAC, 1/2 HP 125-250 VAC
• Enclosure Ratings: NEMA Type 1, 2, 4, 13; UL Type 1, 2, 4, 13; IP56 (IP68 upon request)
• Environmental: Drip tight, dust tight, watertight, oil tight
• Potentiometer Values: Selected 2 watt linear values including 5,000 ohm and 10,000 ohm
• Mounting: 3 holes for rigid mounting; treadle spring-return
